SKU:

40KNKS00000000SE01

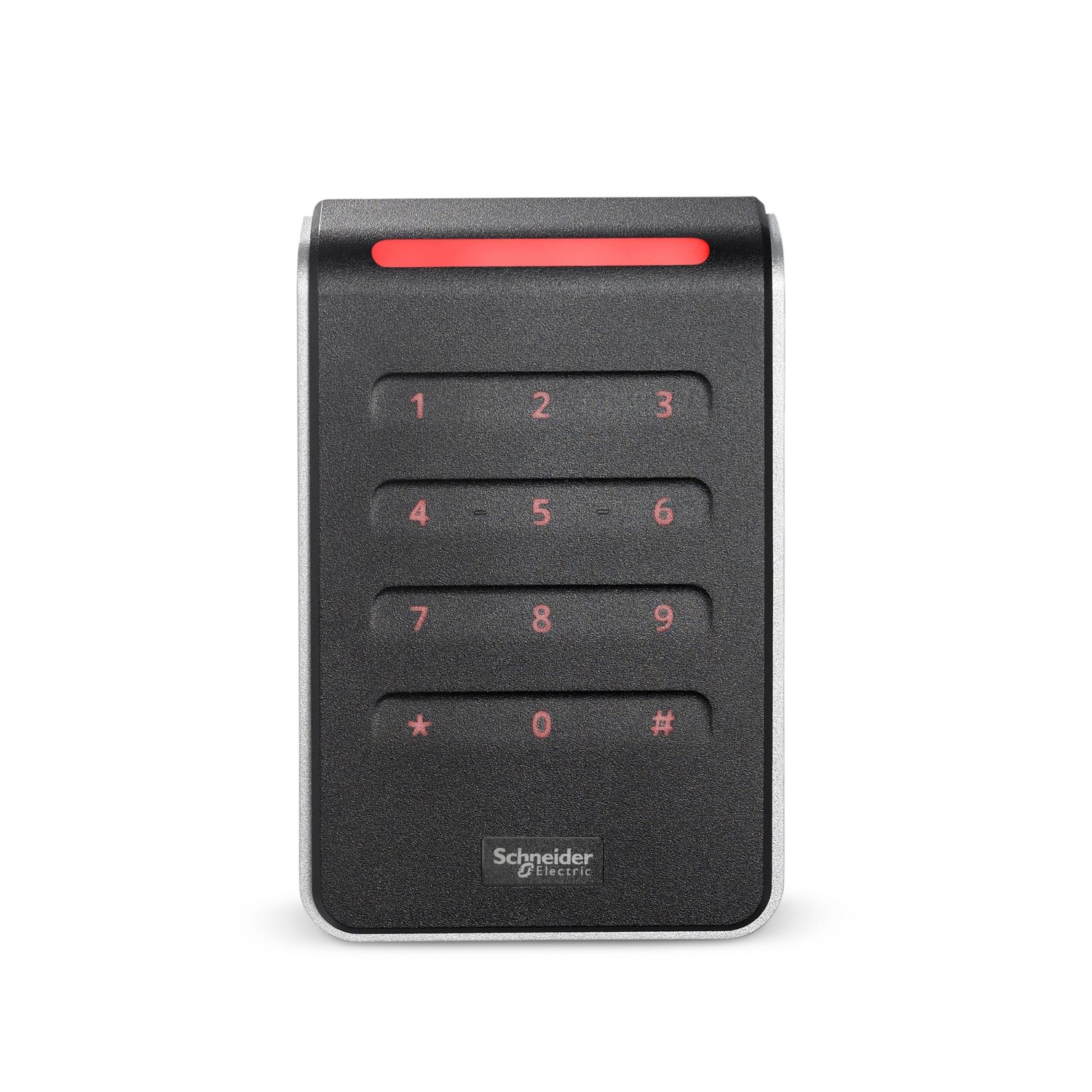

HID Signo 40K Wall Reader, Keypad, Pigtail, Standard profile, Multi Tech

$1,293.47 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

HID Signo 40K Wall Reader, Keypad, Pigtail, Standard profile, Multi Tech

Manufacturer: Schneider Electric

Product Page Link

Product Data Sheet

HID Signo 40K Wall Reader, Keypad, Pigtail, Standard profile, Multi Tech

Attribute name	Attribute value
Main
Control button type	12 push-buttons
Device application	access control
Depth	21.5 mm
Width	80 mm
[In] rated current	80 mA
Electrical connection	pigtail connector
IP degree of protection	IP65
Relative humidity	0-95 % RH, non-condensing
Technology type	iCLASS Seos, bluetooth, CSI Indala, HID Prox
Ambient air temperature for storage	-40-85 °C
Colour	black and silver
Mounting mode	wall-mounted
Reading distance	6...10 cm for
Current consumption	250 mA
Net weight	160 g
Status LED	tricolor LED
Product or component type	reader
RFID frequency	2.4 GHz, 13.56 MHz, 125 kHz
Standards	UL 294
Communication port protocol	OSDP, Wiegand, Bluetooth
Maximum cable distance between devices	152 m
Keypad type	12 keys
Ambient air temperature for operation	-35-66 °C
Height	121.5 mm
[Us] rated supply voltage	12 V DC
Product certifications	UL

Range	Signo
Model	Signo 40K
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Weight	102.965 kg
