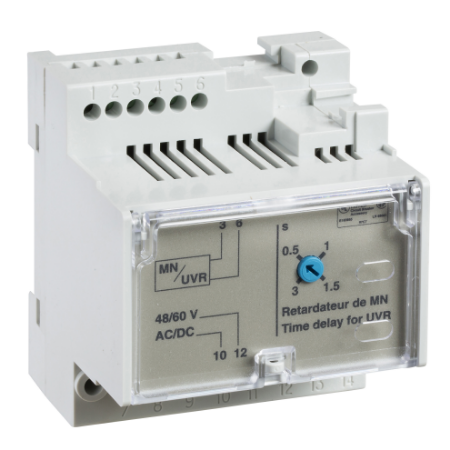

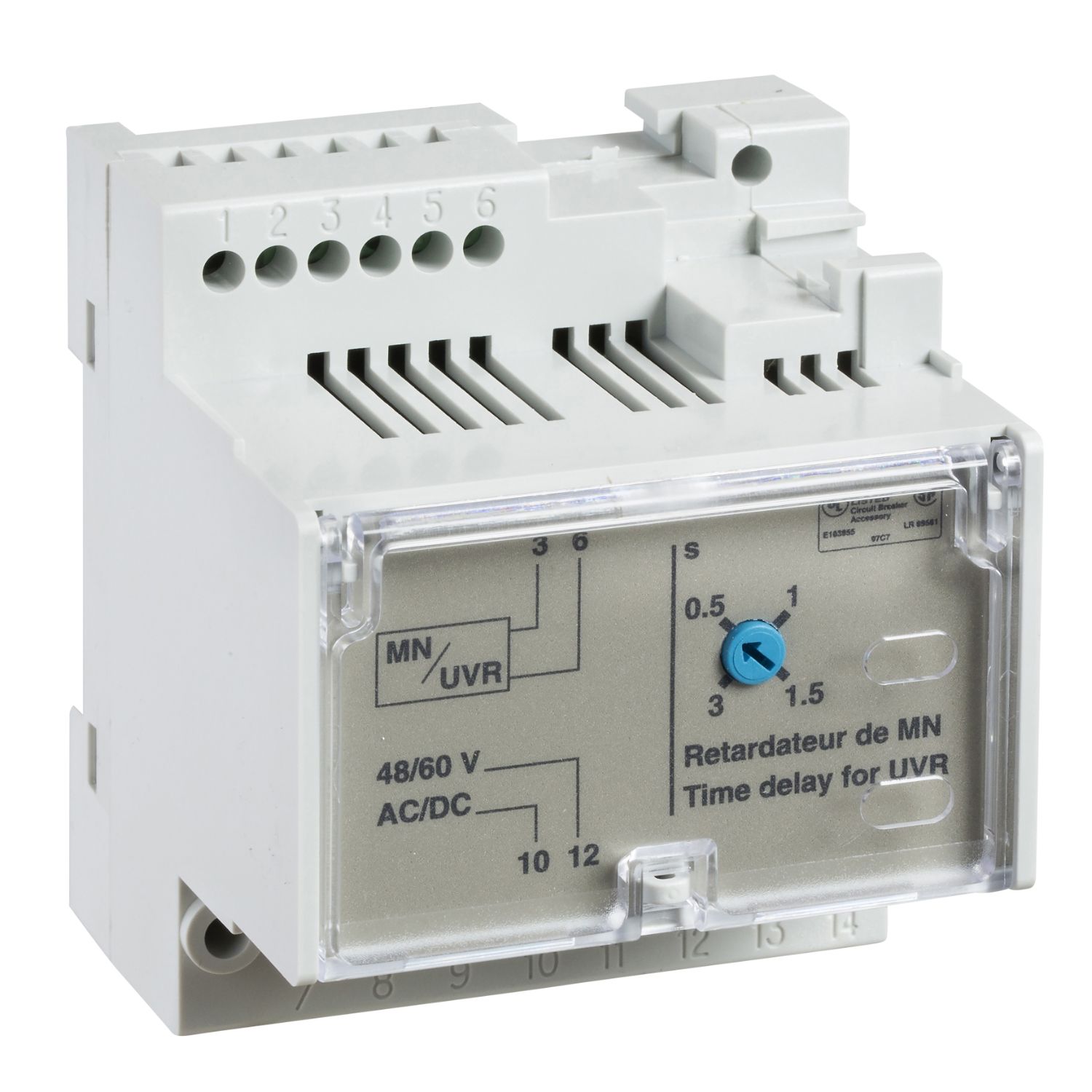

Picture of MN delay unit, MasterPact NT/NW, ComPacT NS, adjustable time delay 0.5s to 3s, 48/60VDC, 48/60VAC 50/60Hz, spare part
SKU:

33680

MN delay unit, MasterPact NT/NW, ComPacT NS, adjustable time delay 0.5s to 3s, 48/60VDC, 48/60VAC 50/60Hz, spare part

Old price: $813.89 INC GST
$651.11 INC GST
Available for Shipping : 12-Jan-2026
MN delay unit, MasterPact NT/NW, ComPacT NS, adjustable time delay 0.5s to 3s, 48/60VDC, 48/60VAC 50/60Hz, spare part
  • Outstanding durability with the features you need
  • Easy to order and stock
  • High quality: using advanced manufacturing methods and premium materials
  • Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards
  • Answers to the most stringent application with most reliable distribution systems ensuring continuity of service
  • Meet your needs with flexibility to achieve system efficiency during the design phase
  • ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
  • Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
  • Multiple international standards certificated
  • Green Premium with recognized environmental claims
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Product environmental
Declaration of conformity
End of life manual
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This time delay unit is an auxiliary that can be combined with an undervoltage release (MN). It must be associated with a 48VDC MN undervoltage release. It eliminates the risk of nuisance tripping due to transient voltage dips lasting from 200ms to 3s. Its power supply is 48-60VDC or 48-60VAC 50/60Hz. This time delay unit has 4 adjustable steps (0.5s - 1s - 1.5s - 3s). It is an external accessory and can be mounted in the switchboard.

Products specifications

Attribute name Attribute value
Main
Device short name MN delay unit
Device application control
Range MasterPacT
Range of product ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSXm, ComPact NSX400...630 DC, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX100...250
Voltage release type undervoltage release
Product or component type time delay relay
Range compatibility Masterpact MasterPact NW DC, Masterpact MasterPact NT UL 489, Masterpact MasterPact NW UL 489, ComPact ComPact NSX DC, ComPact ComPact NSXm, PowerPact PowerPact Multistandard, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT
[Uc] control circuit voltage 48...60 V DC, 48...60 V AC 50/60 Hz
Complementary
Mounting mode external mounting
Impulse duration 200 ms
Supply inrush power 200 VA
Supply holding power 4.5 VA
Threshold tripping voltage 0.85 Un close, 0.35...0.7 Un open
Response time 3 s, 1.5 s, 1 s, 0.5 s
Time delay range 0.5...3 s
Accessory / separate part category spare part for Compact NS1600b...3200, spare part for Compact NS630b...1600
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.4 cm
Package 1 Width 7.6 cm
Package 1 Length 9.0 cm
Package 1 Weight 214.0 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.339 kg
