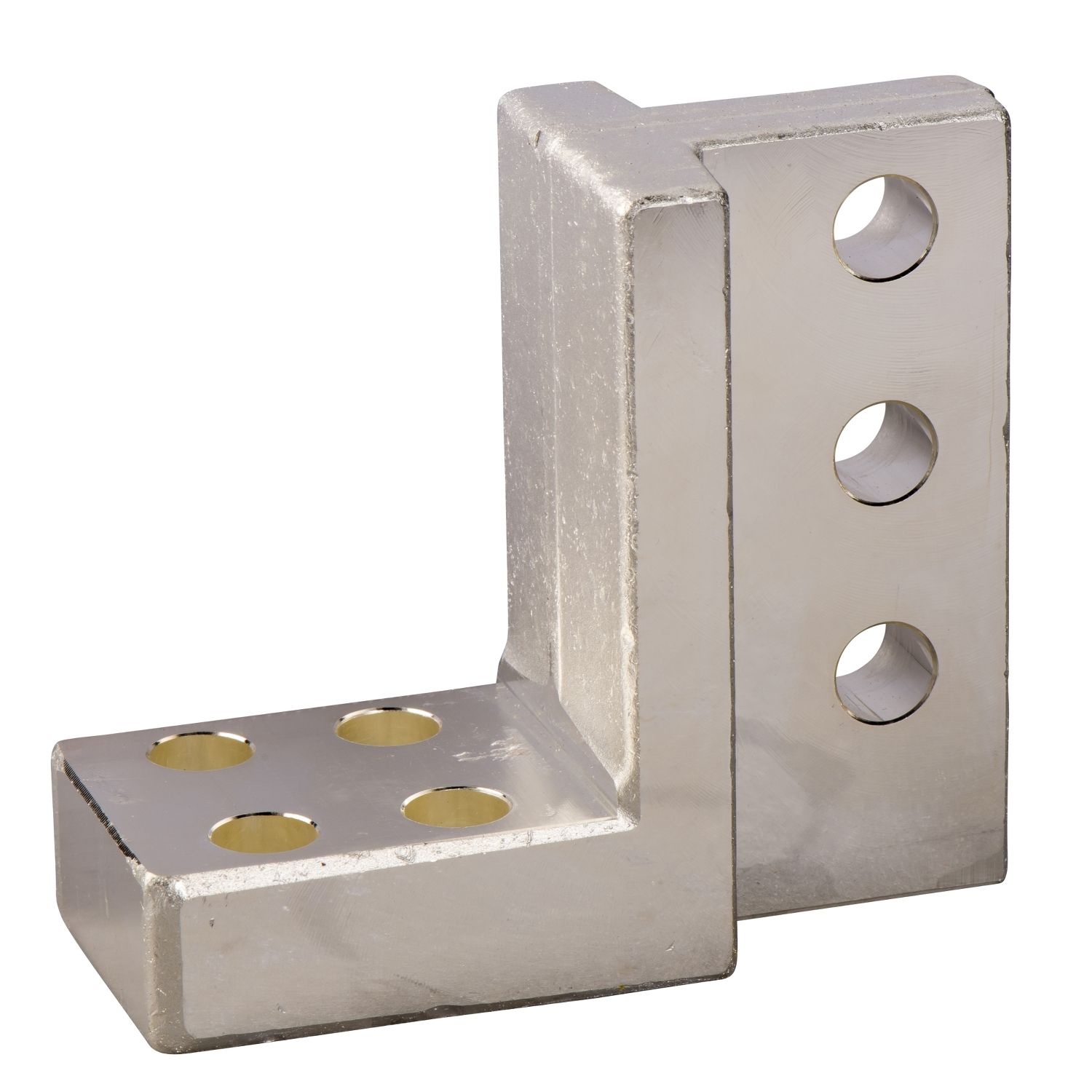

Picture of Vertical connection adapter, MasterPact NT, ComPacT NS630b to NS1600, fixed, 4 poles, spare part
SKU:

33643

Vertical connection adapter, MasterPact NT, ComPacT NS630b to NS1600, fixed, 4 poles, spare part

Old price: $962.50 INC GST
$789.25 INC GST
Available for Shipping : 12-Jan-2026
Vertical connection adapter, MasterPact NT, ComPacT NS630b to NS1600, fixed, 4 poles, spare part
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
Instruction sheet
User guide
Product Page Link
Product Data Sheet
These accessories are vertical connection adapters for 4 poles Compact NS 630b to 1600 and Masterpact NT 06 to 16. They are screwed to the front connection terminals of fixed or drawout devices. The rated current is up to 1600 A. They are sold by set of 4 parts.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Poles description 4P
Range MasterPacT, ComPacT
Product or component type connection adapter
Accessory / separate part category connection accessory
Range compatibility Masterpact MasterPact NT, ComPact ComPact NS630b...1600
Range of product ComPact NS630b...1600
Complementary
Location of connection front
[In] rated current 1600-1600 A
Accessory / separate part category spare part for Compact NS630b...1600
Connection position vertical
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 21.800 cm
Package 1 Length 27.000 cm
Package 1 Weight 5.217 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 16.648 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 140.936 kg
