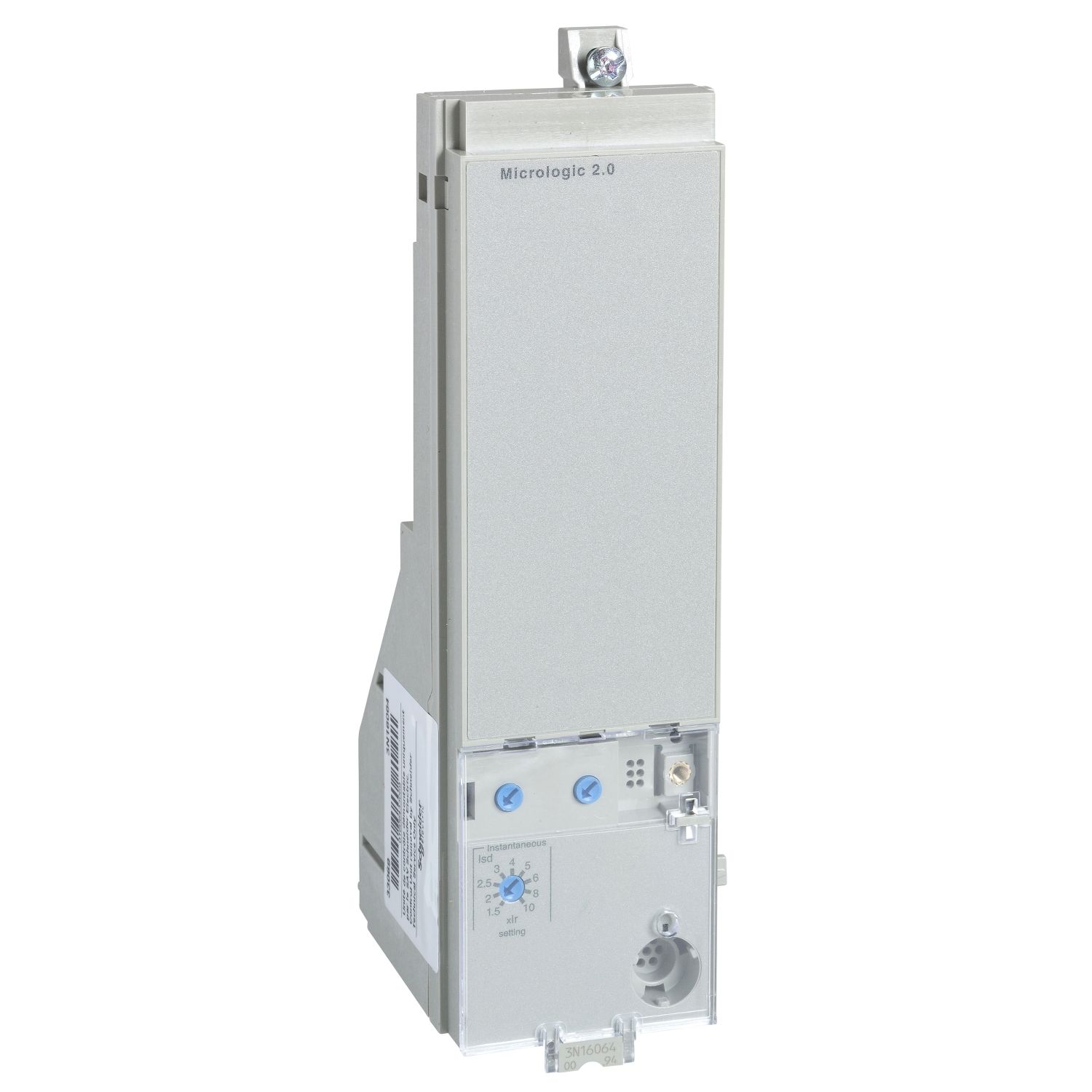

Control unit MicroLogic 2.0, ComPact NS630b/NS1600, fixed and drawout, basic protections (LI)

Old price: $1,641.20 INC GST
$1,345.78 INC GST
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Control unit MicroLogic 2.0, ComPact NS630b/NS1600, fixed and drawout, basic protections (LI)
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
Micrologic 2.0 is an electronic trip unit used on Compact NS630b to NS3200 circuit breakers. This control unit has a basic protection and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable instantaneous protection against short-circuits. Micrologic 2.0 indicates overloads with an Alarm LED. This trip unit can be associated with Compact NS basic frame.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range compatibility ComPact NS630b...1600, ComPact NS1600b...3200
Mounting mode drawout, fixed
Range ComPacT
Protected poles description 3t + N/2, 3t, 4t
Range of product ComPact NS630b...1600, ComPact NS1600b...3200
Trip unit name MicroLogic 2.0
Trip unit technology electronic
Poles description 3P, 4P
Product name MicroLogic
Product or component type trip unit
Network type AC
Trip unit protection functions basic protection
Network frequency 50/60 Hz
Complementary
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 0.4...1 x In
Zone selective interlocking ZSI without
Earth-leakage protection without
Thermal memory 20 mn
[tr] long-time delay adjustment range 12.5-600 s at 1.5 x Ir, 0.5-24 s at 6 x Ir, 0.7-16.6 s at 7.2 x Ir
Instantaneous pick-up adjustment type Ii adjustable 9 settings
Long time delay adjustment type adjustable 9 settings
Environment
Ambient air temperature for storage -50-85 °C
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 13.500 cm
Package 1 Length 38.000 cm
Package 1 Weight 306.000 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 28.192 kg
