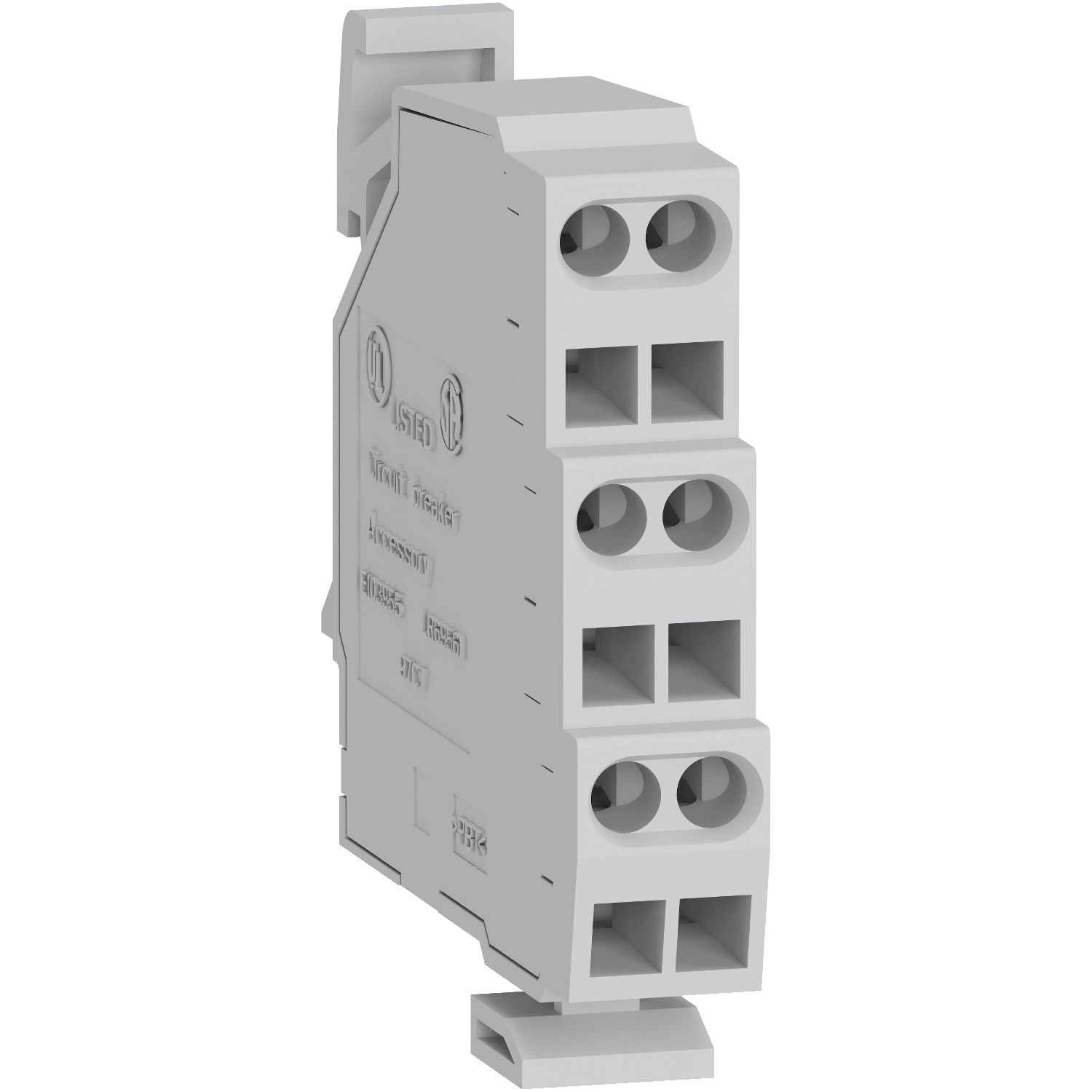

Picture of Chassis position contact, MasterPact NT/NW, ComPacT NS, drawout, CE/CD/CT position, standard, 6A/240VAC, spare part
SKU:

33170

Chassis position contact, MasterPact NT/NW, ComPacT NS, drawout, CE/CD/CT position, standard, 6A/240VAC, spare part

Old price: $235.95 INC GST
$188.76 INC GST
Available for Shipping : 08-Dec-2025
Chassis position contact, MasterPact NT/NW, ComPacT NS, drawout, CE/CD/CT position, standard, 6A/240VAC, spare part
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Declaration of conformity
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name carriage switch
Device application monitoring
Signal contacts composition 1 NO/NC
Range MasterPacT
Product or component type auxiliary contact
Range compatibility ComPact ComPact NS630b...1600, Masterpact MasterPact NW DC, Masterpact MasterPact NW, Masterpact MasterPact NT
Range of product ComPact NS630b...1600
Complementary
Minimum load 100 mA at 24 V
[Ie] rated operational current DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC, AC-12: 8 A at 480 V AC 50/60 Hz, AC-12: 8 A at 380 V AC 50/60 Hz, AC-12: 8 A at 240 V AC 50/60 Hz, AC-12: 6 A at 690 V AC 50/60 Hz
Auxiliary contacts type standard
Mounting mode drawout
Accessory / separate part category spare part for Compact NS630b...1600, spare part for MasterPact NW DC, spare part for MasterPact NW, spare part for MasterPact NT
Auxiliary contacts operation disconnected position, test position, connected position
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 5.000 cm
Package 1 Length 5.000 cm
Package 1 Weight 18.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 7.000 cm
Package 2 Width 21.000 cm
Package 2 Length 35.000 cm
Package 2 Weight 1.800 kg
Unit Type of Package 3 3
Number of Units in Package 3 600
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 11.080 kg
