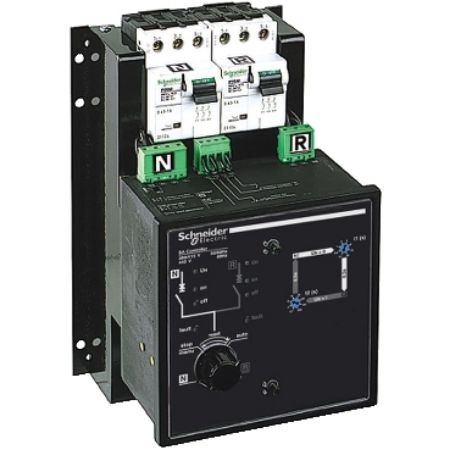

UA controller, TransferPacT source changeover, remote control system integrated, 220…240VAC at 50/60Hz

Old price: $4,010.60 INC GST
$3,280.67 INC GST
Available for Shipping : 05-Jan-2026
UA controller, TransferPacT source changeover, remote control system integrated, 220…240VAC at 50/60Hz
  • Control system plate.
  • Perform Electrical interlocking.
  • Customized running scenarios.
  • Compatible with manual source changeover in TransferPacT family.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
It is a remote controlled source changeover system for Compact NSX, Compact NS and Masterpact devices. It is composed of an ACP plate and of an automatic UA controller. This ACP provides in a single unit the protection of the controller, the control and the connection to the devices. The UA controller is used to create a source-changeover transfer from one source to another depending on the presence of voltage UN on the “Normal” source. UA controller integrates also the start up of an engine generator set, the shedding and reconnection of non-priority circuits, the transfer to the “Replacement” source if one of the phases on the “Normal” source fails. The control voltage is from 220VAC to 240VAC 50/60Hz.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 220...240 V AC at 50/60 Hz
Device short name ACP + UA
Product or component type interface and control unit
Accessory / separate part category interlocking accessory
Range compatibility Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker
Range of product ComPact NS630b...1600, NSX400...630, MasterPact NT, MasterPact NW, Compact NS100...630, NSX100...250
Complementary
Product compatibility Compact NSX400...630, Compact NSX100...250, Compact NS630b...1600
Local signalling fault trip, off, on
Test function by pressing the test button on the front of the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code ACP+UA
[Ie] rated operational current DC-13: 2 A AC 24 V, DC-12: 8 A DC 24 V, DC-12: 2 A DC 48 V, DC-12: 0.6 A DC 110 V, DC-12: 0.4 A DC 250 V, AC-15: 5 A AC 48 V, AC-15: 5 A AC 24 V, AC-15: 4 A AC 110 V, AC-15: 3 A AC 220/240 V, AC-14: 5 A AC 48 V, AC-14: 5 A AC 24 V, AC-14: 4 A AC 220/240 V, AC-14: 4 A AC 110 V, AC-13: 7 A AC 48 V, AC-13: 7 A AC 24 V, AC-13: 6 A AC 220/240 V, AC-13: 6 A AC 110 V, AC-12: 8 A AC 48 V, AC-12: 8 A AC 24 V, AC-12: 8 A AC 220/240 V, AC-12: 8 A AC 110 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Selection modes circuit breaker on N, circuit breaker on R
Output type contacts customer: indication of operation in automatic or stop mode
Operating mode forced operation on replacement source, stop (both normal and replacement source off), forced operation on normal source, automatic operation
Complementary function additional contact: transfer to replacement source only if contact is closed, setting of maximum startup time for the replacement source, selection of type of normal source (single-phase or three-phase), forced normal source if replacement source not operational during peak-tariff, voluntary transfer to replacement source (e.g. energy management commands)
[Ith] conventional free air thermal current 8 A
Interlocked device Compact NS630b...1600, Compact NS100...630, NSX100...250, MasterPact NW, NSX400...630, MasterPact NT
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 27.000 cm
Package 1 Width 28.000 cm
Package 1 Length 38.000 cm
Package 1 Weight 4.155 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 48.600 kg
