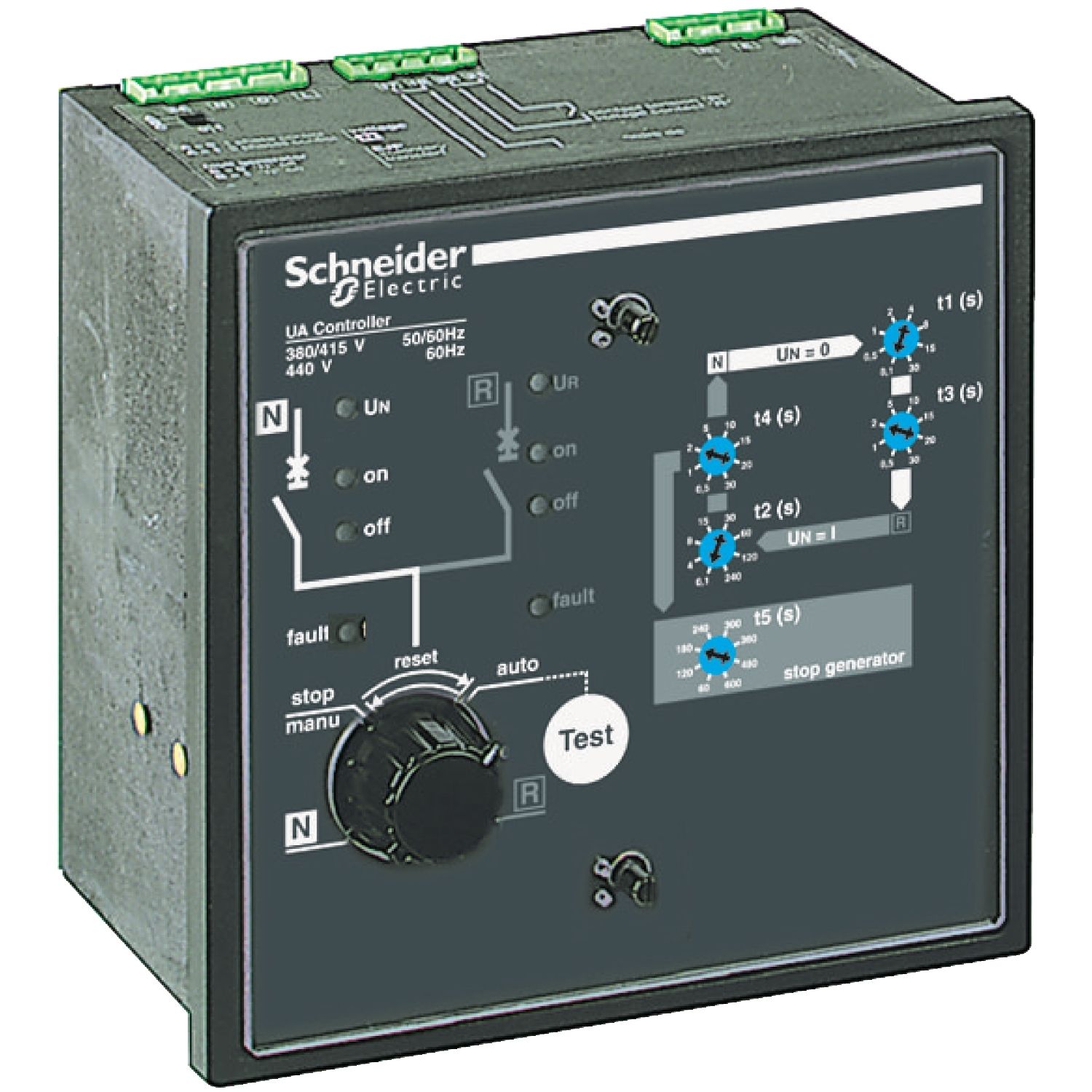

Picture of UA controller, Transferpact, 380 VAC to 415 VAC 50/60Hz, 440 VAC 60Hz
SKU:

29380

UA controller, Transferpact, 380 VAC to 415 VAC 50/60Hz, 440 VAC 60Hz

Old price: $2,710.40 INC GST
$2,217.11 INC GST
Available for Shipping : 05-Jan-2026
UA controller, Transferpact, 380 VAC to 415 VAC 50/60Hz, 440 VAC 60Hz
  • Control system plate.
  • Perform Electrical interlocking.
  • Customized running scenarios.
  • Compatible with manual source changeover in TransferPacT family.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
It is an automatic UA controller of source changeover system for ComPact NSX, ComPact NS and MasterPact devices. It allows the transfer from one source to another one, the engine generator set start-up and the load shedding. It may be installed directly on the Transferpact ACP control plate or mounted on the front panel of the switchboard. The control voltage is from 380VAC to 415VAC 50/60Hz, or 440VAC 60Hz.

Products specifications

Attribute name Attribute value
Main
Device short name UA
Product name UA
Product or component type control unit
Range of product MasterPact NW, ComPact NS630b...1600, Compact NS100...630, MasterPact NT
Complementary
[Us] rated supply voltage 440 V AC at 60 Hz, 380...415 V AC at 50/60 Hz
Local signalling on, fault trip, off
Test function by pressing the test button on the front of the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code UA
[Ie] rated operational current DC-13: 2 A 24 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Selection modes circuit breaker on R, circuit breaker on N
Output type contacts customer: indication of operation in automatic or stop mode
Genset exerciser adjustable delayed shutdown, startup control
Operating mode automatic operation, forced operation on replacement source, forced operation on normal source, stop (both normal and replacement source off)
Complementary function selection of type of normal source (single-phase or three-phase), forced normal source if replacement source not operational during peak-tariff, voluntary transfer to replacement source (e.g. energy management commands), setting of maximum startup time for the replacement source, additional contact: transfer to replacement source only if contact is closed
[Ith] conventional free air thermal current 8 A
Interlocked device MasterPact NT, Compact NS100...630, MasterPact NW, Compact NS630b...1600
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.6 cm
Package 1 Width 15.6 cm
Package 1 Length 17.2 cm
Package 1 Weight 1.586 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 10.282 kg
