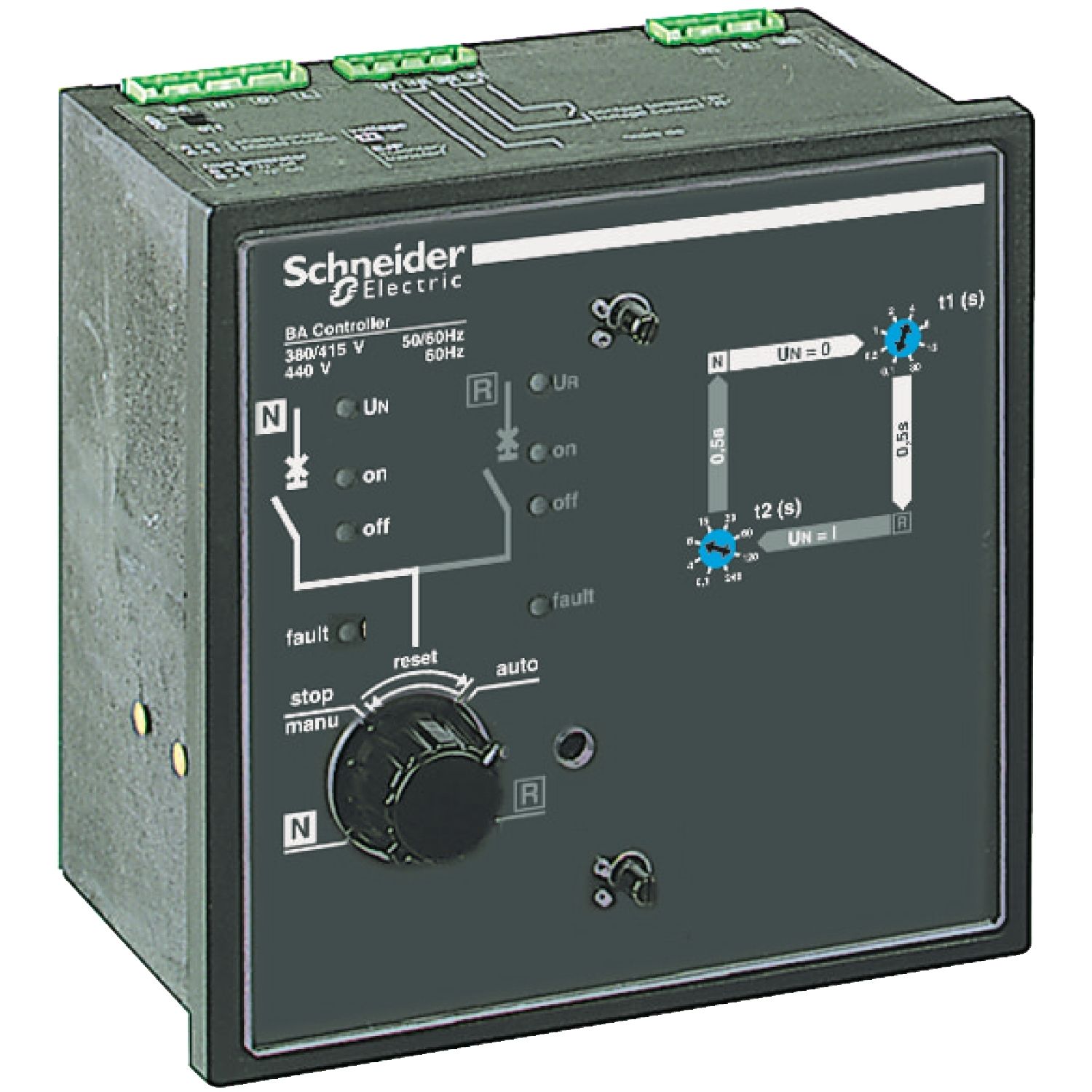

Picture of BA controller, for TransferPacT automatic control unit, 380…415V, 50/60Hz
SKU:

29377

BA controller, for TransferPacT automatic control unit, 380…415V, 50/60Hz

Old price: $2,362.80 INC GST
$1,932.77 INC GST
Available for Shipping : 03-Feb-2026
BA controller, for TransferPacT automatic control unit, 380…415V, 50/60Hz
  • Control system plate.
  • Perform Electrical interlocking.
  • Customized running scenarios.
  • Compatible with manual source changeover in TransferPacT family.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name BA
Product name BA
Product or component type control unit
Range of product MasterPact NT, MasterPact NW, ComPact NS630b...1600, Compact NS100...630
Complementary
[Us] rated supply voltage 440 V AC at 60 Hz, 380...415 V AC at 50/60 Hz
Local signalling off, fault trip, on
Test function by opening the P25M circuit breaker supplying the controller
Input type contacts customer voluntary order to transfer to source R
Compatibility code BA
[Ie] rated operational current DC-13: 2 A 24 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V
Selection modes circuit breaker on R, circuit breaker on N
Output type contacts customer: indication of operation in automatic or stop mode
Operating mode automatic operation, stop (both normal and replacement source off), forced operation on normal source, forced operation on replacement source
Complementary function voluntary transfer to replacement source (e.g. energy management commands), additional contact: transfer to replacement source only if contact is closed
[Ith] conventional free air thermal current 8 A
Interlocked device Compact NS100...630, MasterPact NW, Compact NS630b...1600, MasterPact NT
Environment
IP degree of protection IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529
Standards IEC 947-5-1
IK degree of protection front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.500 cm
Package 1 Width 15.500 cm
Package 1 Length 17.800 cm
Package 1 Weight 1.306 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.534 kg
