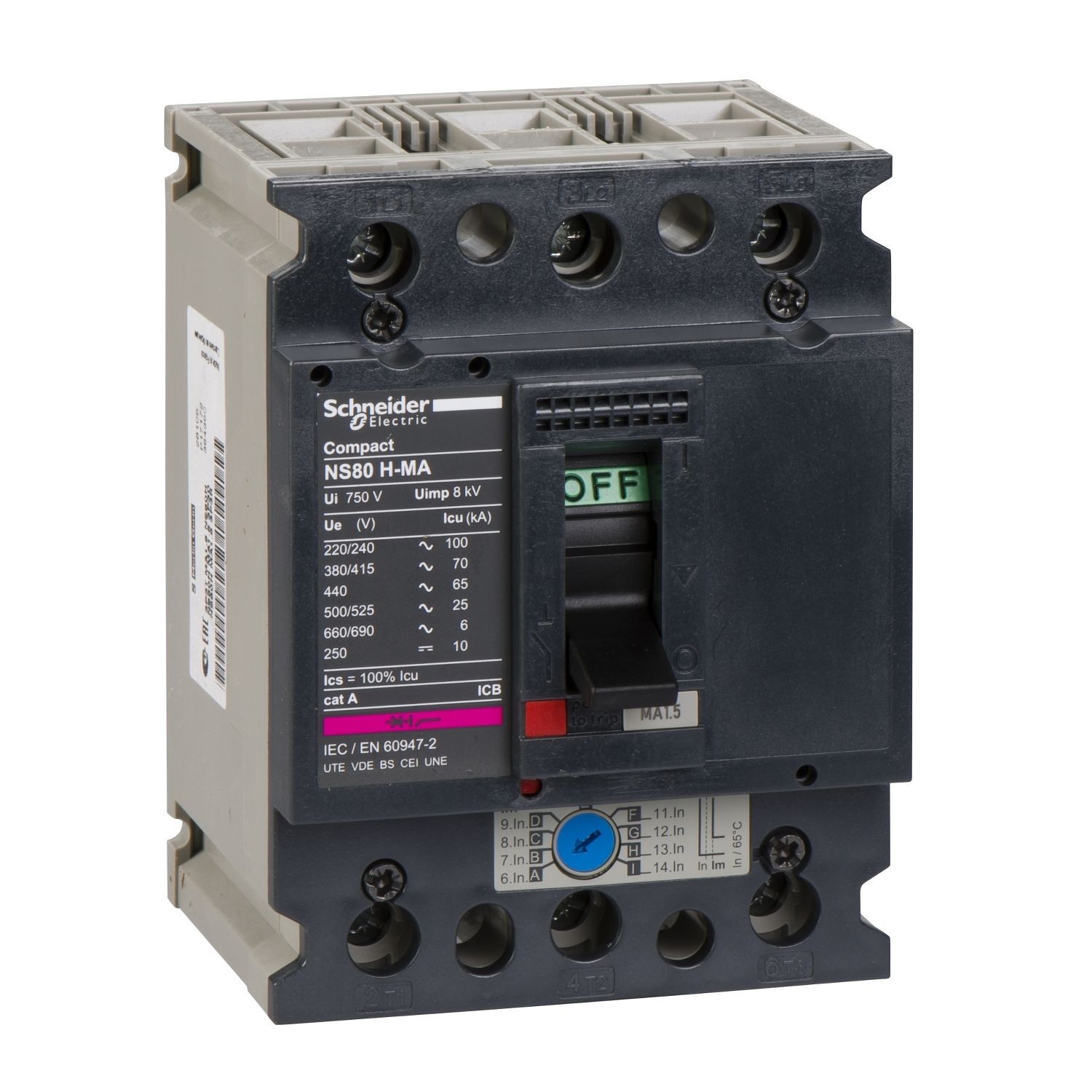

CIRCUIT BREAKER, IEC 1A NEH MAG TRIP

Old price: $894.30 INC GST
$731.54 INC GST
Availability: Please contact our sales team on 1300 724 622.
CIRCUIT BREAKER, IEC 1A NEH MAG TRIP
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Circuit breaker name Compact NS80H
Trip unit technology magnetic
Device short name Compact NS80H
Device application motor
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Protection type short-circuit protection (magnetic)
Poles description 3P
Trip unit rating 1.5-1.5 A
Suitability for isolation yes conforming to IEC 60947-2
[Ui] rated insulation voltage 750 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 480 V AC 50/60 Hz conforming to NEMA AB1, 100 kA at 240 V AC 50/60 Hz conforming to NEMA AB1, 10 kA at 600 V AC 50/60 Hz conforming to NEMA AB1
Pollution degree 3 conforming to IEC 60947
Utilisation category category A
Range ComPacT
Product or component type circuit breaker
Protected poles description 3t
Breaking capacity code H
Network type AC
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
Range of product NS80H-MA
Trip unit name MA
[In] rated current 80 A at 65 °C
[Ics] rated service breaking capacity 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Network frequency 50/60 Hz
Complementary
Depth 80 mm
Width 90 mm
Local signalling positive contact indication
Compatibility code NS80
Mechanical durability 20000 cycles
Electrical durability 7000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
Mounting mode fixed
Upside connection tunnel terminal
Control type toggle
Zone selective interlocking ZSI without
Instantaneous pick-up adjustment type Ii adjustable
Downside connection tunnel terminal
Instantaneous pick-up adjustment range 6...14 x In
Mounting support backplate
Earth-leakage protection without
Height 120 mm
Environment
Ambient air temperature for storage -50-85 °C
IP degree of protection IP40 conforming to IEC 60529
Standards IEC 60947-2
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Product certifications KEMA, ASTA, LCIE, ASEFA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.4 cm
Package 1 Width 12.7 cm
Package 1 Length 16.4 cm
Package 1 Weight 1.006 kg
