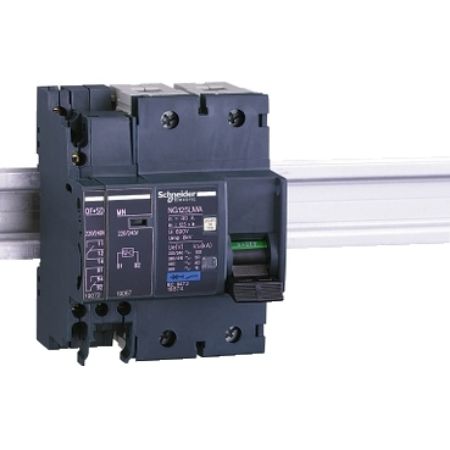

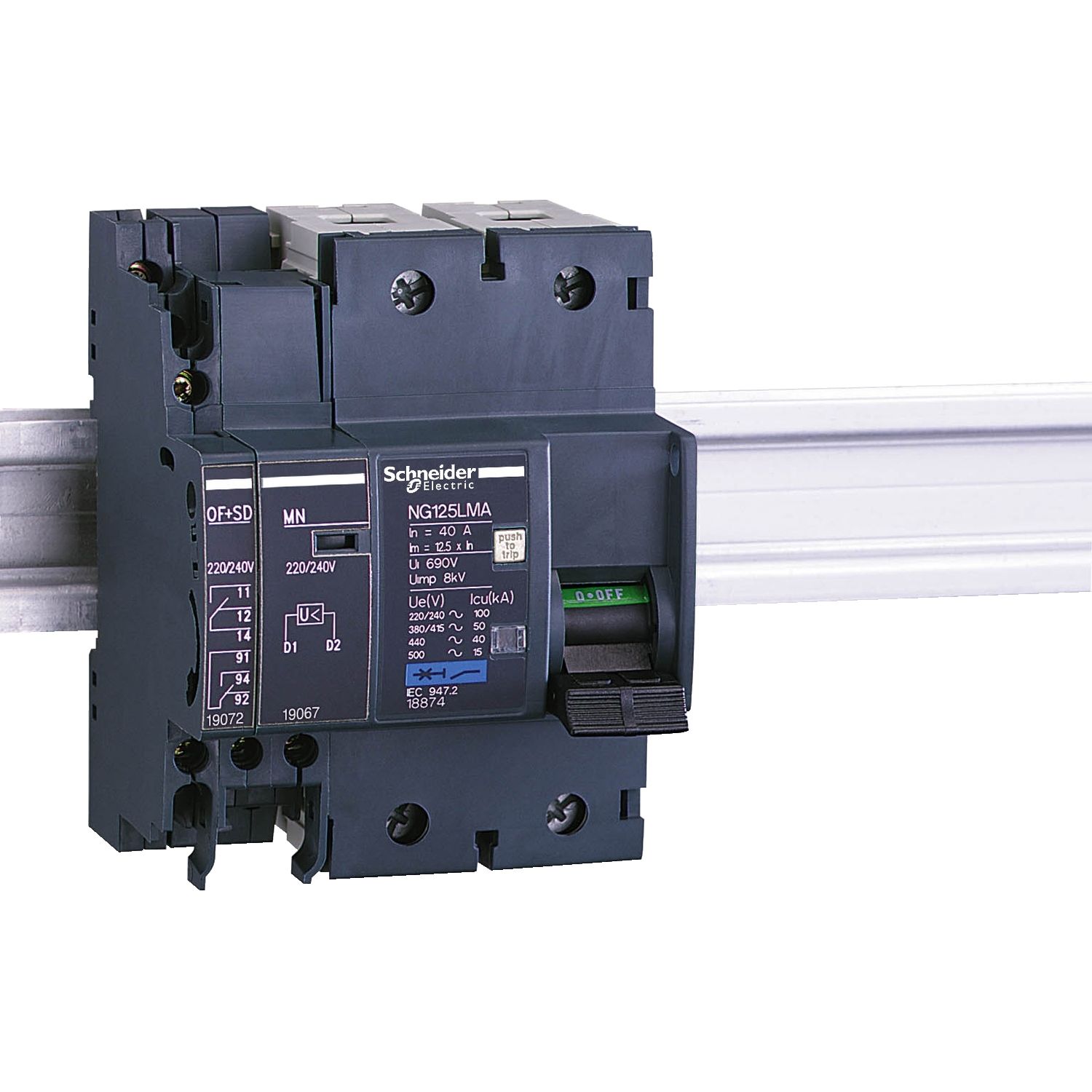

Picture of Auxiliary OC and fault contact, Acti9 NG125, 1 OC + 1 SD, 220VAC to 240VAC (max 6A), 415VAC (max 3A)
SKU:

19072

Auxiliary OC and fault contact, Acti9 NG125, 1 OC + 1 SD, 220VAC to 240VAC (max 6A), 415VAC (max 3A)

Old price: $246.40 INC GST
$145.60 INC GST
Available for Shipping : 12-Jan-2026
Auxiliary OC and fault contact, Acti9 NG125, 1 OC + 1 SD, 220VAC to 240VAC (max 6A), 415VAC (max 3A)
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
User guide
Product Page Link
Product Data Sheet
This Acti9 NG125 electrical auxiliary is an open/close and fault indicating contact mounted on DIN rail. It is dedicated to Acti9 NG125, NG125NA and NG125LMA. It is used for remote indication of the position of the associated device. The 2 contacts changeover indicates "open" or "closed" position of the associated device, and the position of the associated device in the event of electrical fault or actuation of the tripping auxiliary. The width in 9mm pitches is 1. The operating frequency is 50Hz or 60Hz. It also works on direct current. The In rated operational current is from 1A (mini) up to 6A (maxi) depending on the rated voltage. The Ue rated operational voltage is up to 415VAC and 130VDC. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name OF and SD
[In] rated current 0.1-3 A at <= 48 V, DC,  0.1-1 A at 130 V, DC,  0.1-6 A at <= 240 V, AC 50/60 Hz,  0.1-3 A at 415 V, AC 50/60 Hz
Signal contacts composition 2 C/O
Range Acti9
Product or component type OC and fault contact
9 mm pitches 1
Range of product NG125
Complementary
Product compatibility NG125
Tightening torque 1-1 N.m
Depth 75.5 mm
Market segment small commercial
Width 15.3 mm
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-5-1
Compatibility code OF and SD
Electrical durability 10000 cycles conforming to EN/IEC 60947-5-1
Mounting mode fixed
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1
Wire stripping length 10 mm
Connections - terminals plate terminal2 cable(s) 1.5-1.5 mm² - flexible with ferrule, plate terminal2 cable(s) 2.5-2.5 mm² - flexible, plate terminal2 cable(s) 2.5-2.5 mm² - rigid, plate terminal1 cable(s) 0.5-1.5 mm² - flexible with ferrule, plate terminal1 cable(s) 0.5-1.5 mm² - flexible, plate terminal1 cable(s) 0.5-2.5 mm² - rigid
Range compatibility Acti 9 Acti9 NG125, Acti 9 Acti9 NG125LMA, Acti 9 Acti9 NG125NA
Mounting support DIN rail
Height 102.8 mm
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to EN/IEC 60947-5-1
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-60 °C
Product certifications ASTA, ASEFA, KEMA, LCIE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 8.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 67.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 8.500 cm
Package 2 Width 11.500 cm
Package 2 Length 23.500 cm
Package 2 Weight 660.000 g
Unit Type of Package 3 3
Number of Units in Package 3 81
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.336 kg
