SKU:

170ANR12090

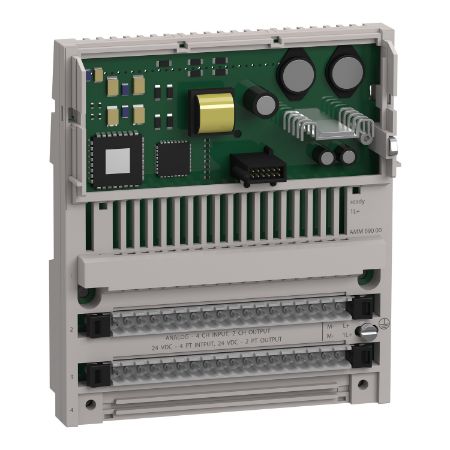

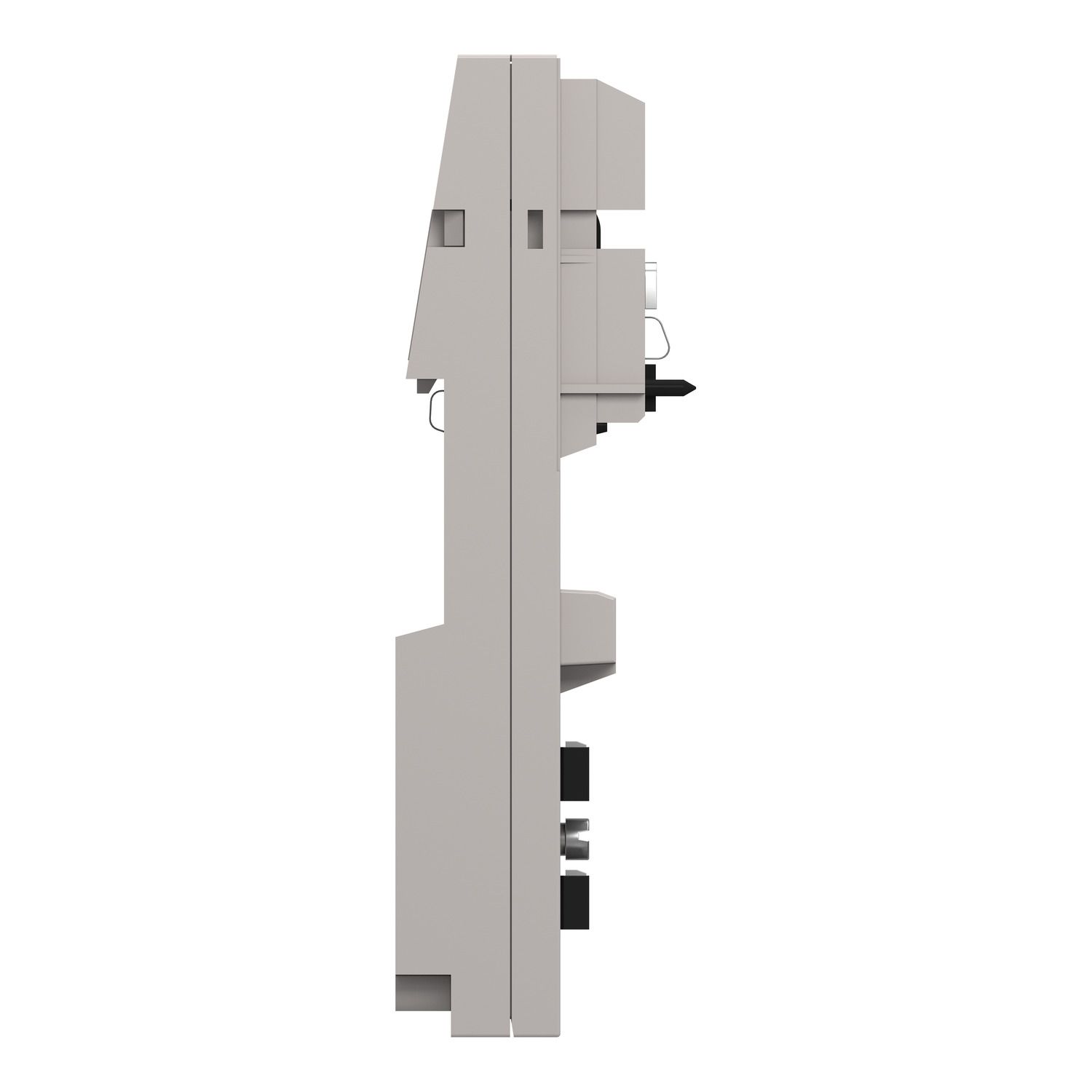

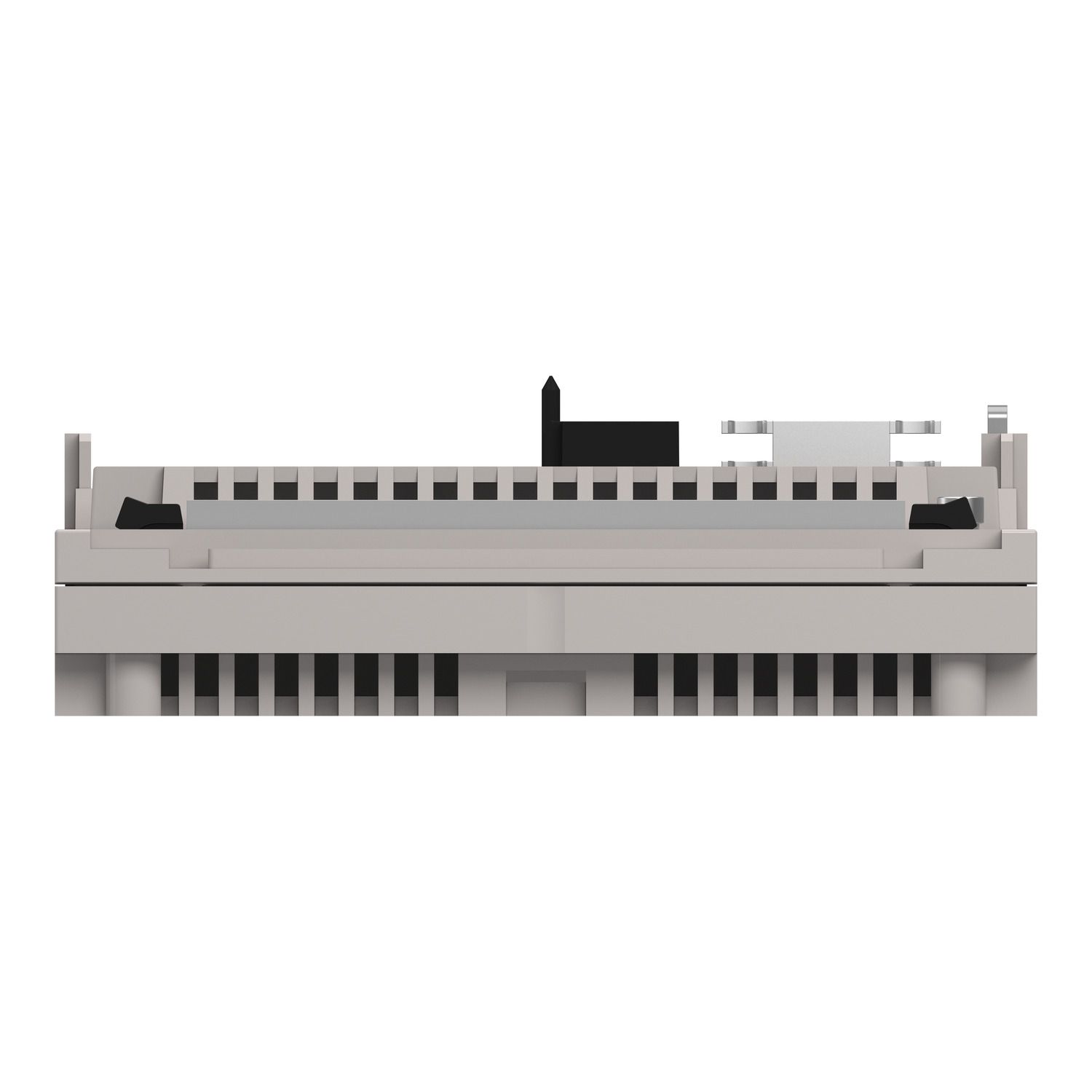

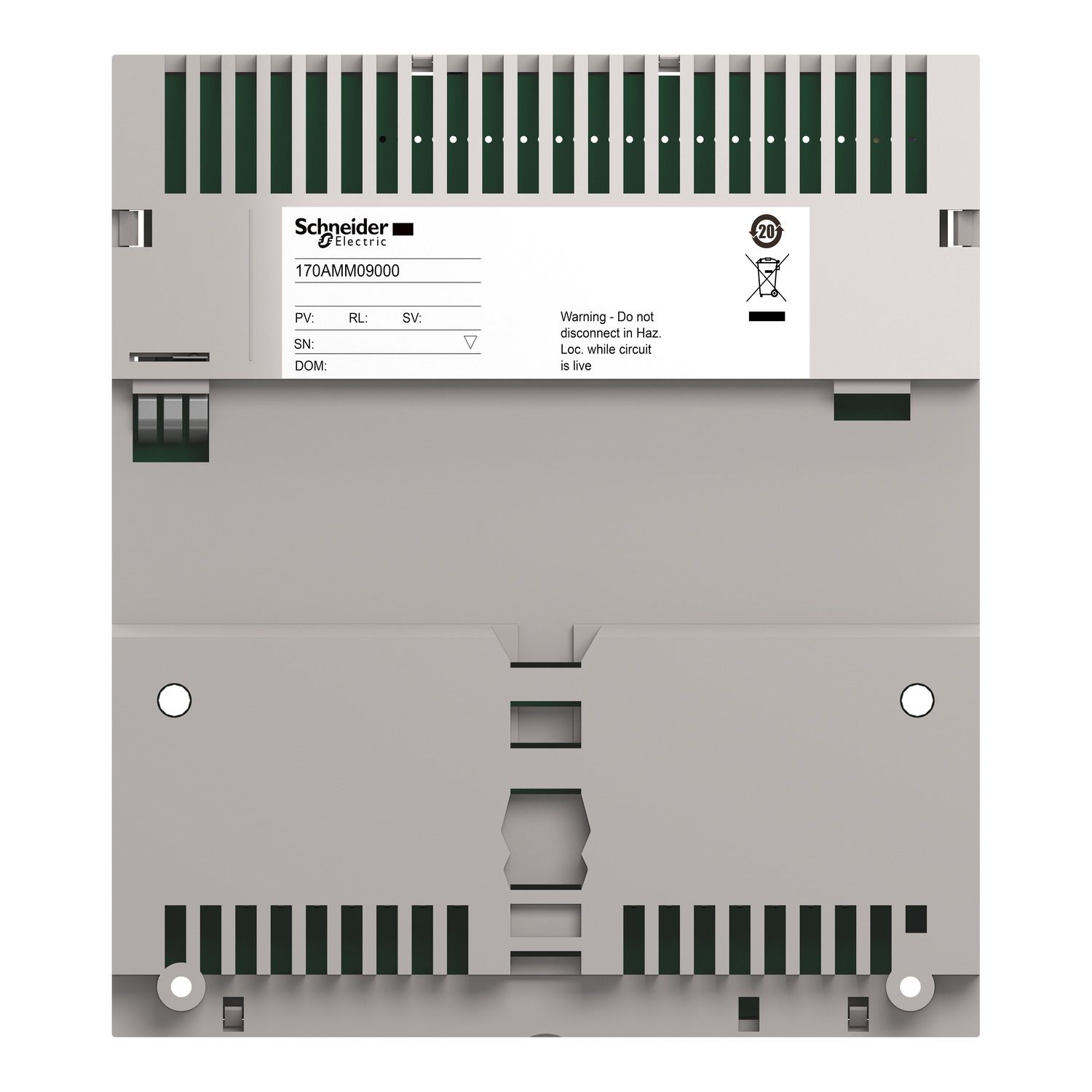

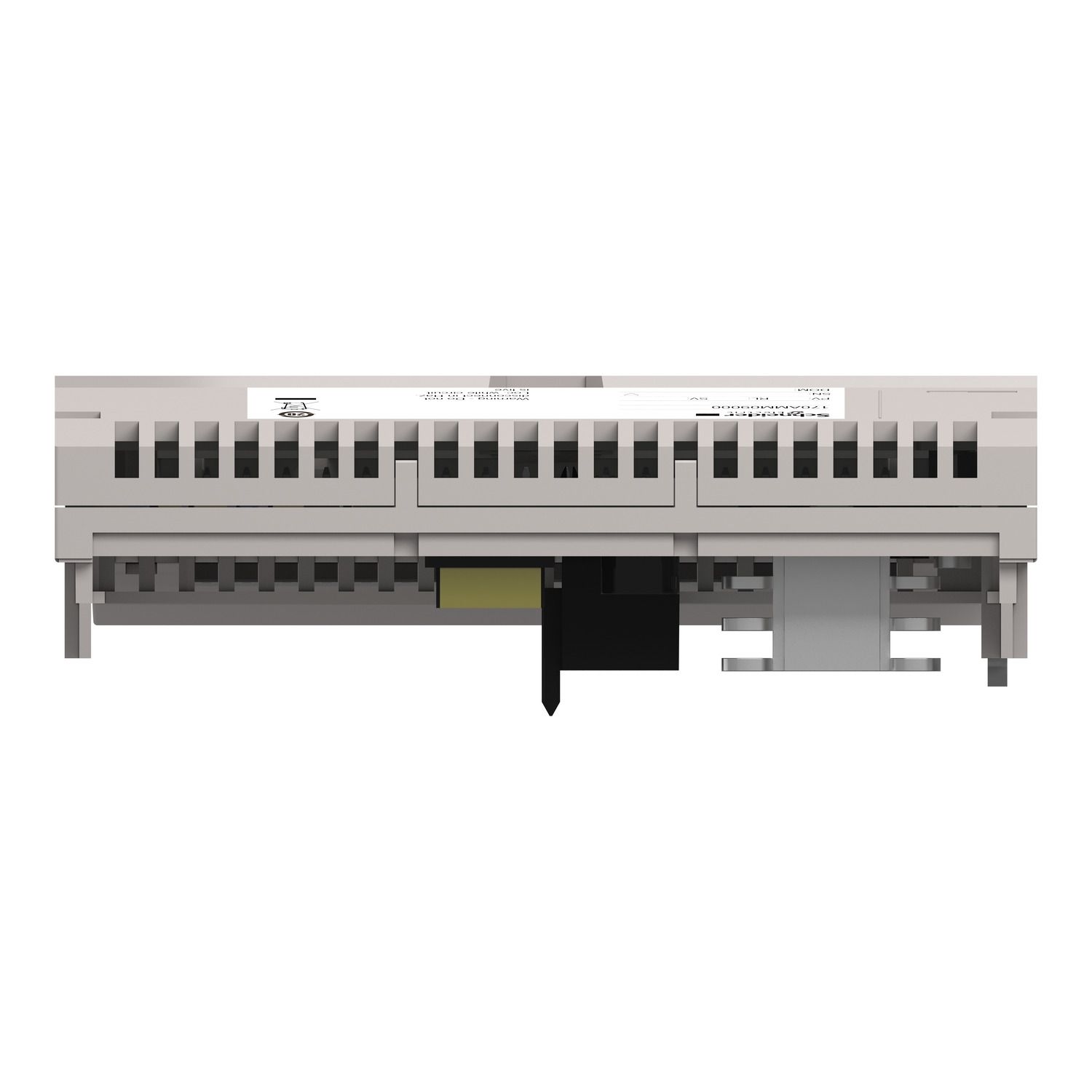

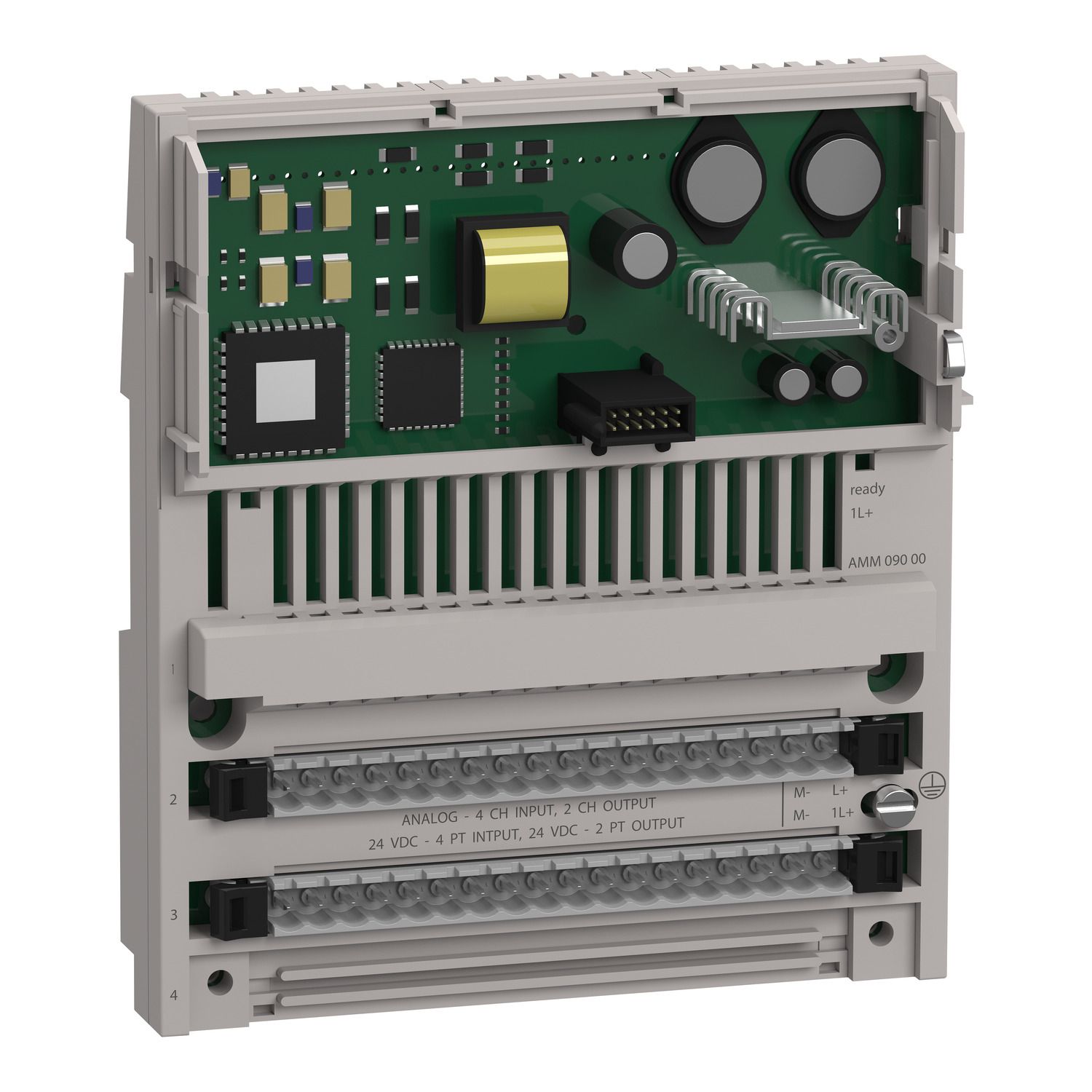

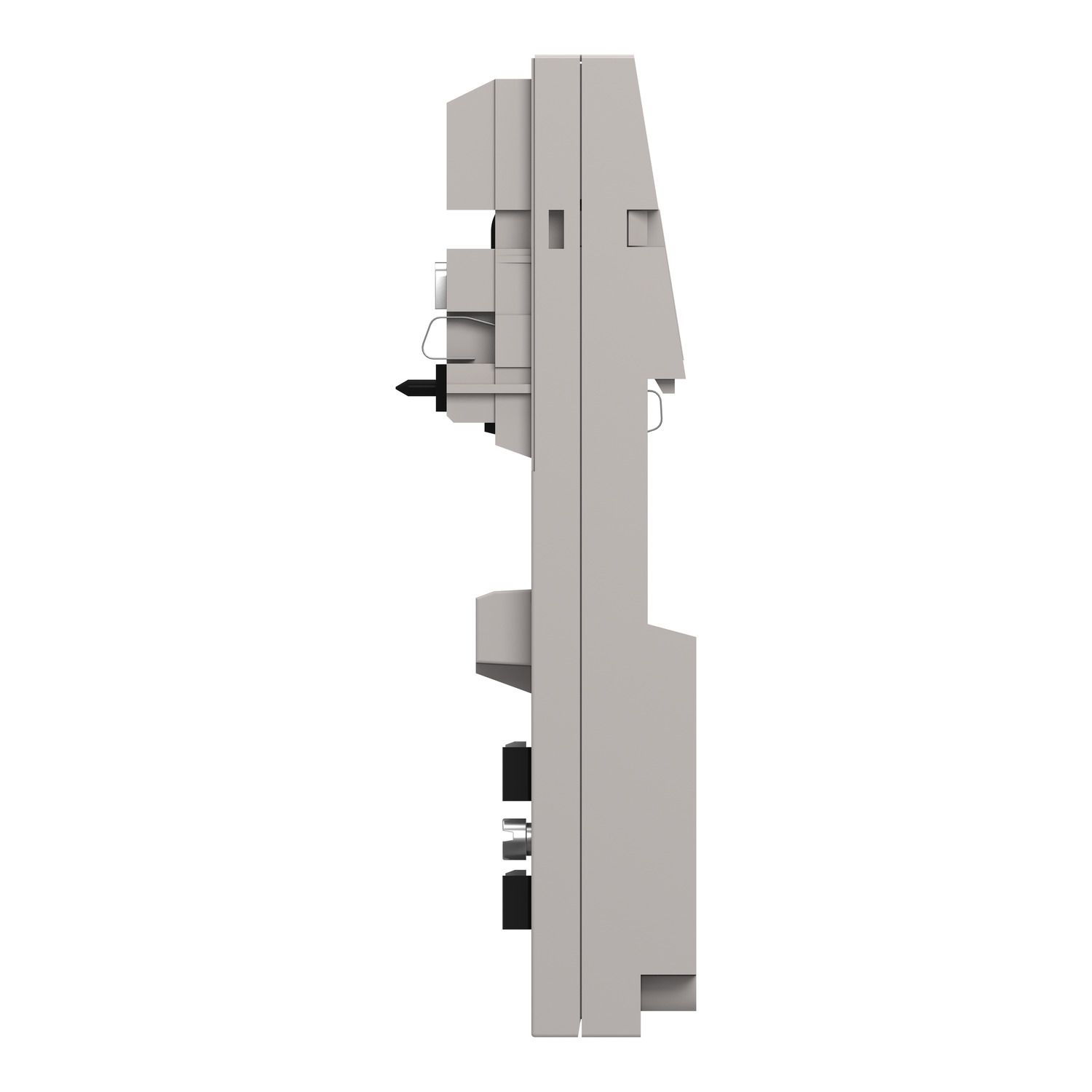

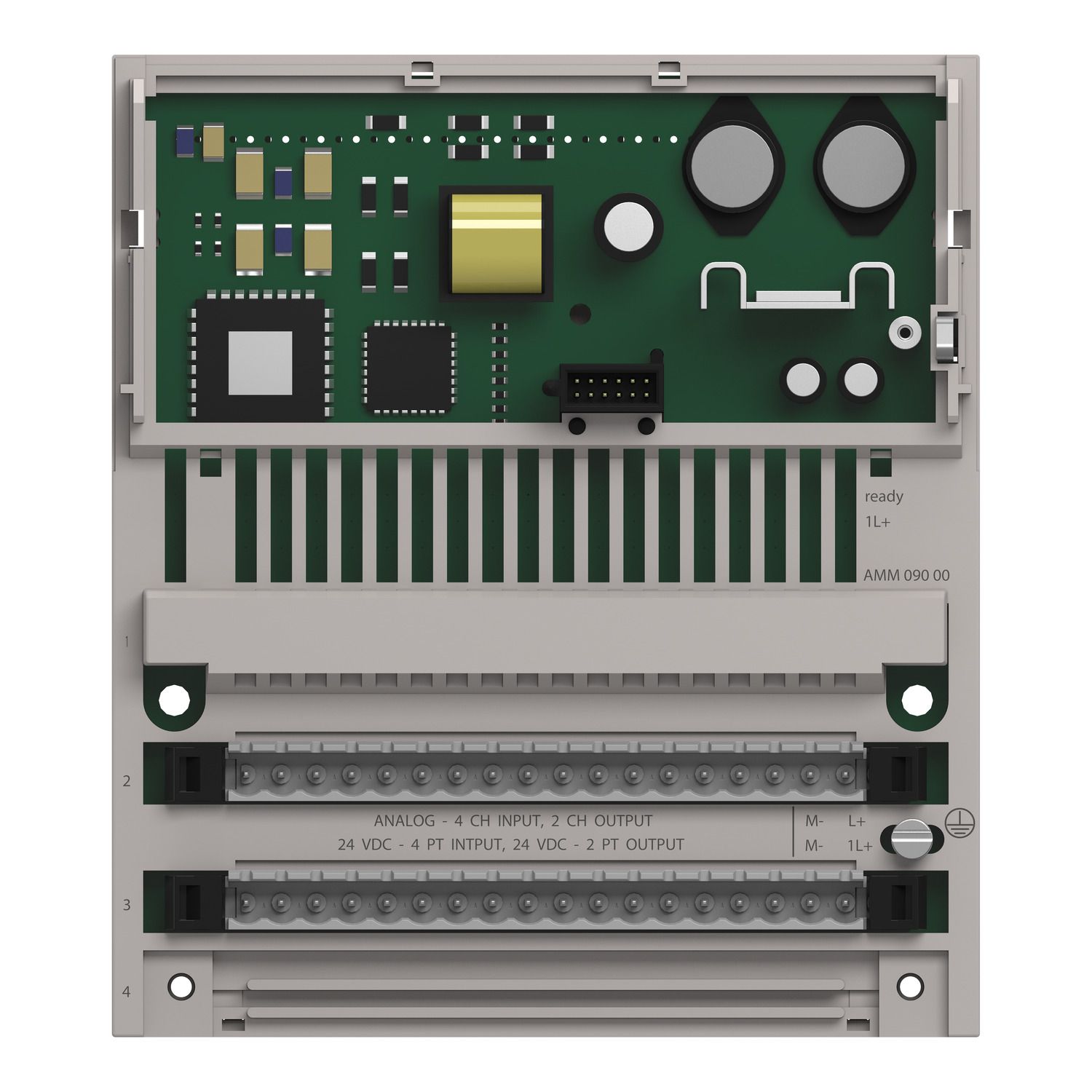

distributed analog/discrete I/O Modicon Momentum

$6,805.70 INC GST
Available for Shipping : 19-Jan-2026
distributed analog/discrete I/O Modicon Momentum
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analog, discrete I/O base module offers 8 discrete outputs, 8 discrete inputs, 6 analog inputs and 4 analog outputs. It is a module with analog input/output voltage ranges from 0V to 10V and discrete input voltage of 24V DC and discrete output voltage from 10V to 30V. There is an isolation between analog I/O and operating voltage, operating voltage and I/O from the ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Analogue input type single ended
Analogue input range 0...10 V
Range of product Modicon Momentum automation platform
Group of channels 1 group of 4 analog outputs, 1 group of 6 analog inputs, 2 groups of 4 discrete inputs, 1 group of 8 discrete outputs
Discrete output voltage 10...30 V
Output short-circuit protection with discrete output
Analogue output range 0...10 V 14 bits
Analogue input resolution 14 bits 0...10 V
Product or component type analogue,discrete I/O base
Output overload protection with discrete output
Discrete input voltage 24 V DC
Complementary
Discrete input number 8 conforming to IEC 1131-2 Type 2
Input overvoltage protection 45-45 V 10 s discrete input
Discrete input logic positive
Maximum power dissipation in W 6 W
Current state 0 guaranteed <= 2 mA (discrete input)
Voltage state 0 guaranteed <= 5 V for discrete input
Discrete output current 0.25 A per point, 2 A per module, 2 A per group
Input voltage limits 3...32 V
Marking CE
Response time 1.2 ms from state 1 to state 0 for discrete input, 1.2 ms from state 0 to state 1 for discrete output, 1.2 ms from state 0 to state 1 for discrete input, 1.05 ms from state 1 to state 0 for discrete output
[Us] rated supply voltage 24 V (19.2-30 V)DC
Discrete output logic positive
Height 125 mm
Discrete output type transistor
Depth 47.5 mm
Width 141.5 mm
Conversion time 1.2 ms analogue output, 0.75 ms analogue input circuit
Local signalling 4 LEDs for channel status
Input resistance 1 MOhm analogue input circuit
Fail state for analogue output: reset to zero, for analogue output: hold
Isolation voltage 500 V (duration = 1 min) between operating voltage and I/O from ground, 500 V (duration = 1 min) between analogue I/O and operating voltage
Voltage state 1 guaranteed >= 11 V for discrete input
Maximum leakage current 0.4 mA DC 30 V discrete output
Net weight 0.24 kg
Surge current 2.5 A 1 ms discrete output
Current state 1 guaranteed >= 6 mA (discrete input)
Current consumption 400 mA at 24 V DC
Maximum voltage drop <0.4 V 0.25 A at state on discrete output
Conversion error 0,002 0...10 V 25 °C analogue input circuit, +/- 0.4 % 0...10 V 25 °C analogue output
Output load >= 2 kOhm 0...10 V analogue output
Electrical connection 2 connectors for removable terminal blocks
Maximum analogue input voltage 15 V
Environment
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 391.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.281 kg
