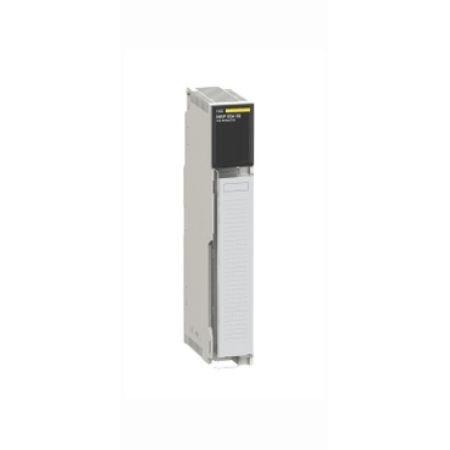

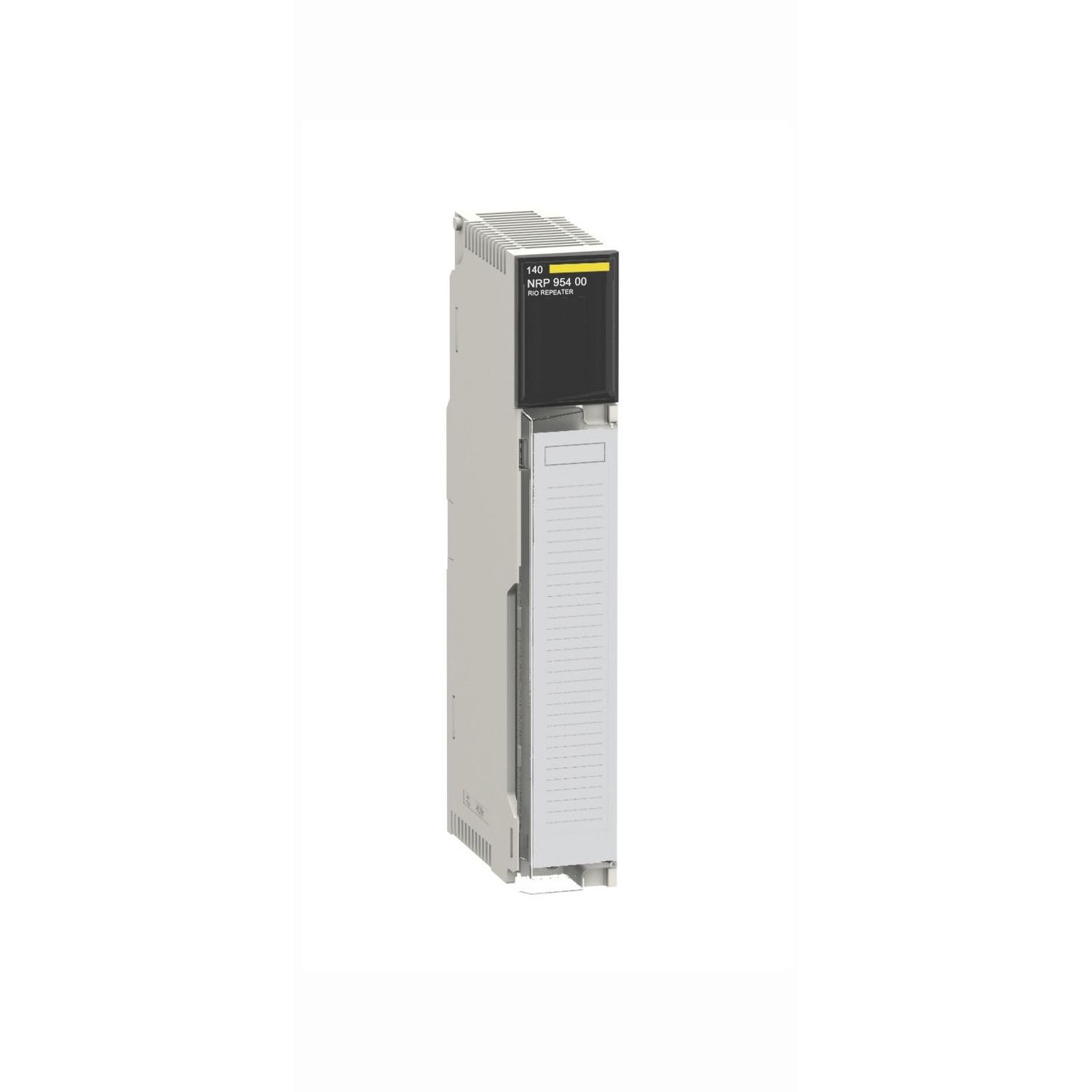

Picture of Fibre optic repeater MM/ST RIO S908 2CH
SKU:

140NRP95400

Fibre optic repeater MM/ST RIO S908 2CH

$14,550.31 INC GST
Availability: Please contact our sales team on 1300 724 622.
Fibre optic repeater MM/ST RIO S908 2CH
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Optic fiber type multi mode
Product or component type fibre optic repeater
Range of product Modicon Quantum automation platform
Complementary
Receiver sensitivity - 30 dBm
Number of port 1 , connector type: coaxial connector, 2 fiber optic, connector type: ST
Inrush current 1 A at 5 V DC
Depth 103.85 mm
Width 40.34 mm
Bus current requirement 700 mA
Detected silence -36 dBm
Power dissipation in W 5 W
Wavelength 820 nm
AWG gauge AWG 14...AWG 1
Attenuation -10.5--4 dB (100/140 µm), -16--10 dB (62.5/125 µm), -20--13 dB (50/125 µm)
Net weight 0.554 kg
Material PC (polycarbonate)
Local signalling 1 LED red for activity detected, 1 LED red with FAULT marking for error, 2 LEDs green for optical communication status, 1 LED green for coaxial communication status, 1 LED red with ERR marking for internal fault, module failure, 1 LED green with RDY marking for module status
Marking CE
Rise/fall time 20 ns
Optic distance between 2 transceivers 3000 m (100/140 µm), optical power: 5-5 dBm, 3000 m (62.5/125 µm), optical power: 3.5-3.5 dBm, 2000 m (50/125 µm), optical power: 3.5-3.5 dBm
Height 250 mm
Dynamic range 20 dB
Environment
Operating altitude 0...2000 m
Ambient air temperature for storage -40-85 °C
Relative humidity 0-95 %
Standards FM Class 1 Division 2, UL 508, CSA C22.2 No 142
Ambient air temperature for operation 0-60 °C
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.900 cm
Package 1 Width 16.400 cm
Package 1 Length 31.500 cm
Package 1 Weight 596.000 g
