SKU:

140CRA21220

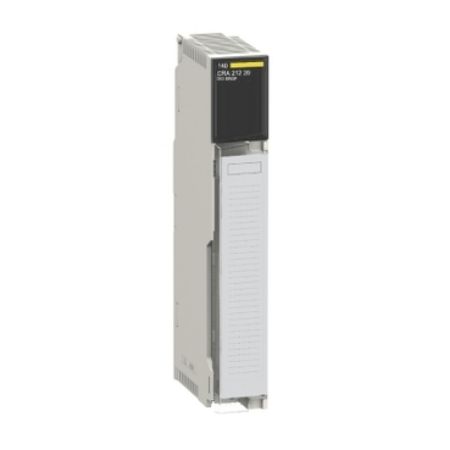

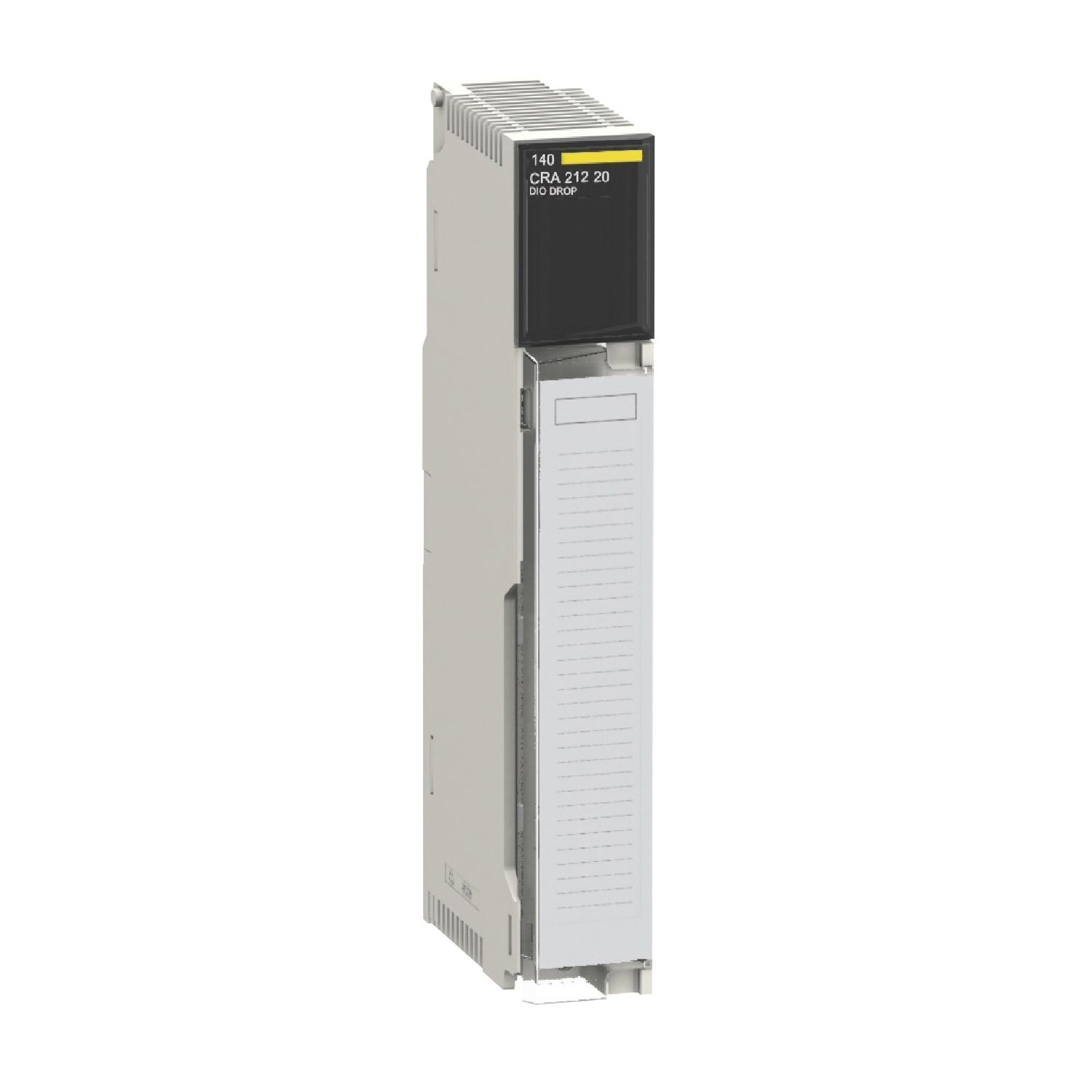

DIO drop interface Modicon Quantum - 24 V DC - 2 redundant port

$5,910.00 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

DIO drop interface Modicon Quantum - 24 V DC - 2 redundant port

Manufacturer: Schneider Electric

Instruction sheet

Declaration of conformity

User guide

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Product or component type	DIO drop interface
Range of product	Modicon Quantum automation platform
Complementary
Associated fuse rating	2.5 A
[Us] rated supply voltage	24 V DC
Module format	standard
Inrush current	30 A 24 V
Output voltage	5.1 V
Diagnostics run time	RAM address, RAM, checksum
Number of port	2 redundant
Nominal output current	3 A
Maximum supply current	1.6 A 24 V
Power dissipation in W	11 W
Supply voltage limits	20-30 V
Short-circuit protection	with
Maximum buffer time	1 ms
Typical backplanes	16 positions, 4 positions, 3 positions, 6 positions, 2 positions, 10 positions
Diagnostics startup	RAM, checksum, RAM address
Output overvoltage protection	with
I/O words	30 I/32 O
Minimum load current	0 A
Connections - terminals	terminal block, 7 poles
Environment
Operating altitude	<= 5000 m
Protective treatment	TC
Resistance to electrostatic discharge	8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity	95-95 % without condensation
Ambient air temperature for storage	-40-85 °C
Standards	UL 508
Resistance to electromagnetic fields	10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0-60 °C
Product certifications	DNV, CSA Class 1 Division 2, GOST, C-Tick, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.0 cm
Package 1 Width	16.0 cm
Package 1 Length	31.5 cm
Package 1 Weight	726.0 g
