SKU:

140CRA21210

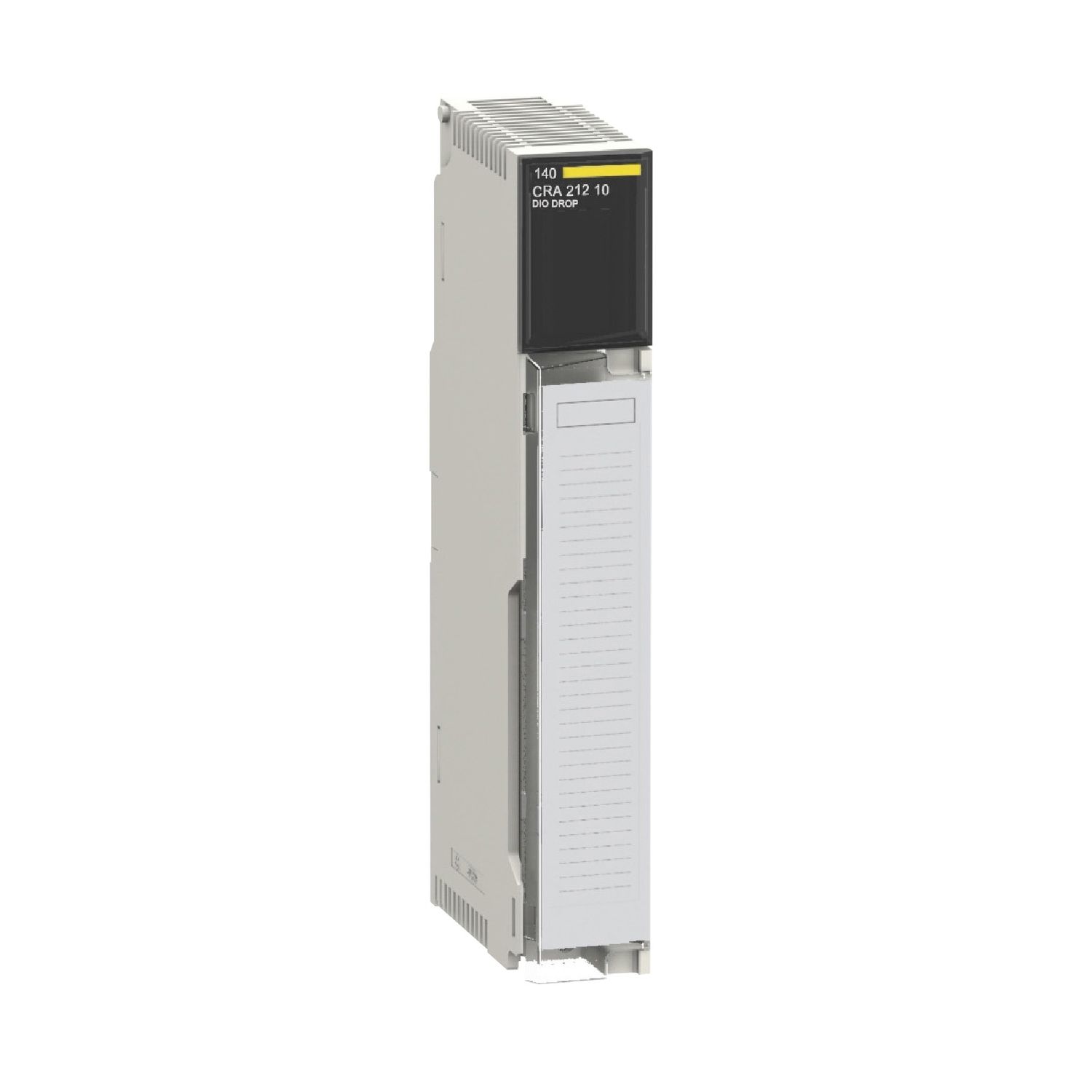

DIO drop interface Modicon Quantum - 115/230 V AC - 1 redundant port

$5,930.50 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

DIO drop interface Modicon Quantum - 115/230 V AC - 1 redundant port

Manufacturer: Schneider Electric

Instruction sheet

Declaration of conformity

User guide

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Product or component type	DIO drop interface
Range of product	Modicon Quantum automation platform
Complementary
Supply frequency	47...63 Hz
Associated fuse rating	1.5 A
[Us] rated supply voltage	115/230 V AC
Module format	standard
Inrush current	20 A 230 V, 10 A 115 V
Output voltage	5.1 V
Diagnostics run time	checksum, RAM, RAM address
Number of port	1 single
Nominal output current	3 A
Maximum supply current	0.4 A 230 V, 0.2 A 115 V
Power dissipation in W	11 W
Supply voltage limits	85-276 V
Short-circuit protection	with
Typical backplanes	10 positions, 4 positions, 2 positions, 3 positions, 6 positions, 16 positions
Diagnostics startup	RAM, checksum, RAM address
Rated power in VA	50 VA
Output overvoltage protection	with
I/O words	30 I/32 O
Minimum load current	0 A
Connections - terminals	terminal block, 7 poles
Environment
Operating altitude	<= 5000 m
Protective treatment	TC
Resistance to electrostatic discharge	8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity	95-95 % without condensation
Ambient air temperature for storage	-40-85 °C
Standards	UL 508
Resistance to electromagnetic fields	10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0-60 °C
Product certifications	CSA Class 1 Division 2, DNV, UL, C-Tick, GOST
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.800 cm
Package 1 Width	16.400 cm
Package 1 Length	31.800 cm
Package 1 Weight	708.000 g
