SKU:

140CPS11420

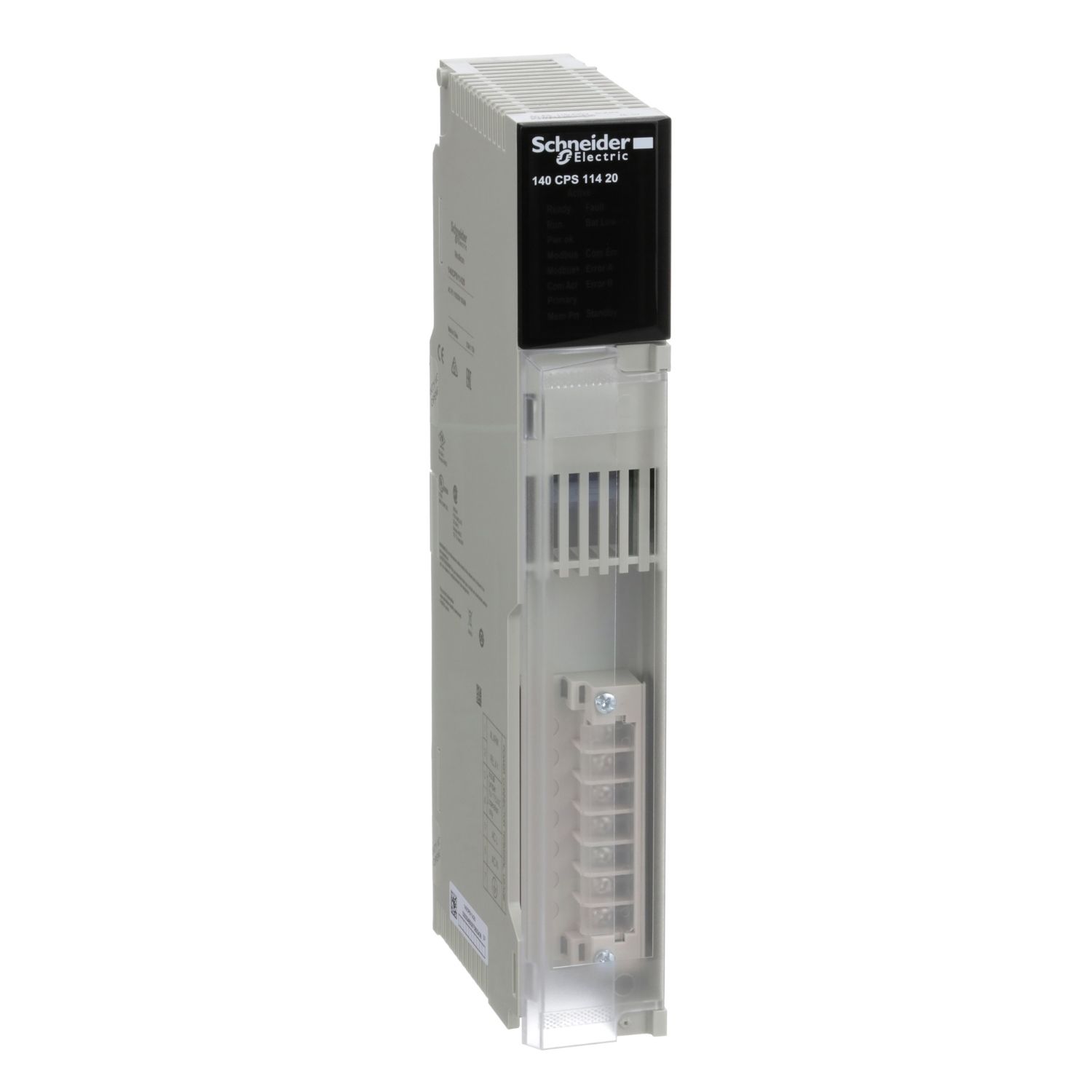

power supply module Modicon Quantum - 115 V/230 V AC - summable or standalone

$5,375.88 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

power supply module Modicon Quantum - 115 V/230 V AC - summable or standalone

Manufacturer: Schneider Electric

Instruction sheet

Declaration of conformity

User guide

Catalog

CAD

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Power supply type	summable or standalone
Product or component type	power supply module
Range of product	Modicon Quantum automation platform
Complementary
Input voltage	230 V (170...276 V) AC, 115 V (93...132 V) AC 47-63 Hz
Inrush current	38 A 115 V, 19 A 230 V
Module format	standard
Output overload protection	internal
Local signalling	1 LED (green) for power (PWR OK)
Harmonic distortion	<= 10 % of fundamental rms value
Rated power in VA	130 VA
Net weight	0.65 kg
Power supply output current	20-20 A 60 °C summable, 11-11 A 60 °C standalone
Alarm output	1 NC 6 A 220 V power supply fault
Input current	750 mA at 230 V, 1300 mA at 115 V
Associated fuse rating	2 A, slow-blow
Output overvoltage protection	internal
Marking	CE
Output voltage	5.1 V DC
Power dissipation	6 + (1.5 x Iout) where Iout is in A
Environment
Operating altitude	<= 5000 m
Resistance to electrostatic discharge	8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity	95-95 % without condensation
Ambient air temperature for storage	-40-85 °C
Standards	CSA C22.2 No 142, UL 508
Resistance to electromagnetic fields	10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0-60 °C
Product certifications	cUL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.49 cm
Package 1 Width	16.3 cm
Package 1 Length	31.08 cm
Package 1 Weight	785.4 g
