Picture of analog input module Modicon Quantum - 8 I multirange
SKU:

140AVI03000

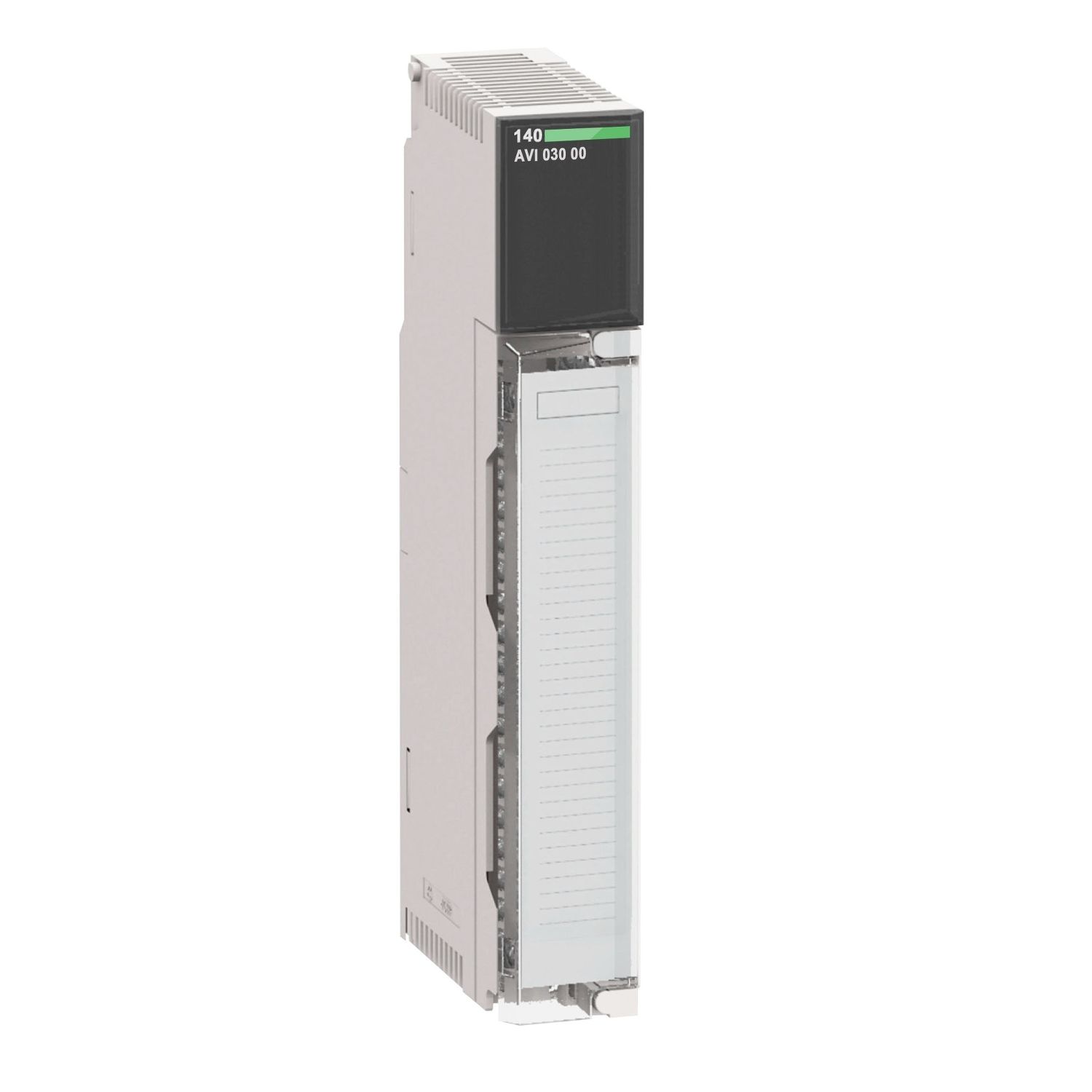

analog input module Modicon Quantum - 8 I multirange

$8,216.21 INC GST
Availability: Please contact our sales team on 1300 724 622.
analog input module Modicon Quantum - 8 I multirange
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
CAD
Catalog
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type analogue input module
Type of filter single pole low pass - 3 dB at 847 Hz +/- 20 %
Range of product Modicon Quantum automation platform
Complementary
Isolation between channels and bus 750 V DC, 500 Vrms AC for 60 s
Analogue input type unipolar voltage: 0...5 V, unipolar voltage: 0...10 V, unipolar current: 0...20 mA, bipolar voltage: +/- 5 V, bipolar voltage: +/- 10 V, bipolar current: 20 mA
Module format standard
Common mode rejection > - 80 dB 60 Hz
Linearity error +/- 0.008 %
Absolute maximum input 25 mA, 50 V DC
Local signalling 8 LEDs (red) for channel fault, 8 LEDs (green) for channel is turned on, 1 LED (red) for external fault, 1 LED (green) for bus communication is present (Active)
Absolute accuracy error +/- 0.05 % of full scale maximum, +/- 0.03 %
Addressing requirement 9 input words
Bus current requirement 280 mA
Linear measuring range (input range) x 1.024 V, (input range) x 1.024 mA
Power dissipation in W 2.2 W
Update time 10 ms
Analogue input number 8
Input type differential
Net weight 0.3 kg
Accuracy drift according to temperature <= 0.004 % of full scale /°C, +/- 0.0015 % of full scale/°C
Analogue input resolution 16 bits 20 mA, 16 bits 0...5 V, 16 bits 0...20 mA, 16 bits 0...10 V, 16 bits +/- 5 V, 16 bits +/- 10 V
Marking CE
Isolation between channels 200 V DC, 135 Vrms AC
Fault type overtacking scale 1...5 V, broken wire 4...20 mA
Input impedance 250 MOhm +/- 0.03 %, > 20 Ohm voltage
Environment
Operating altitude <= 5000 m
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Standards CSA C22.2 No 142, UL 508
Resistance to electromagnetic fields 10 V/m 80-1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications cUL, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 16.500 cm
Package 1 Length 31.500 cm
Package 1 Weight 460.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.694 kg
