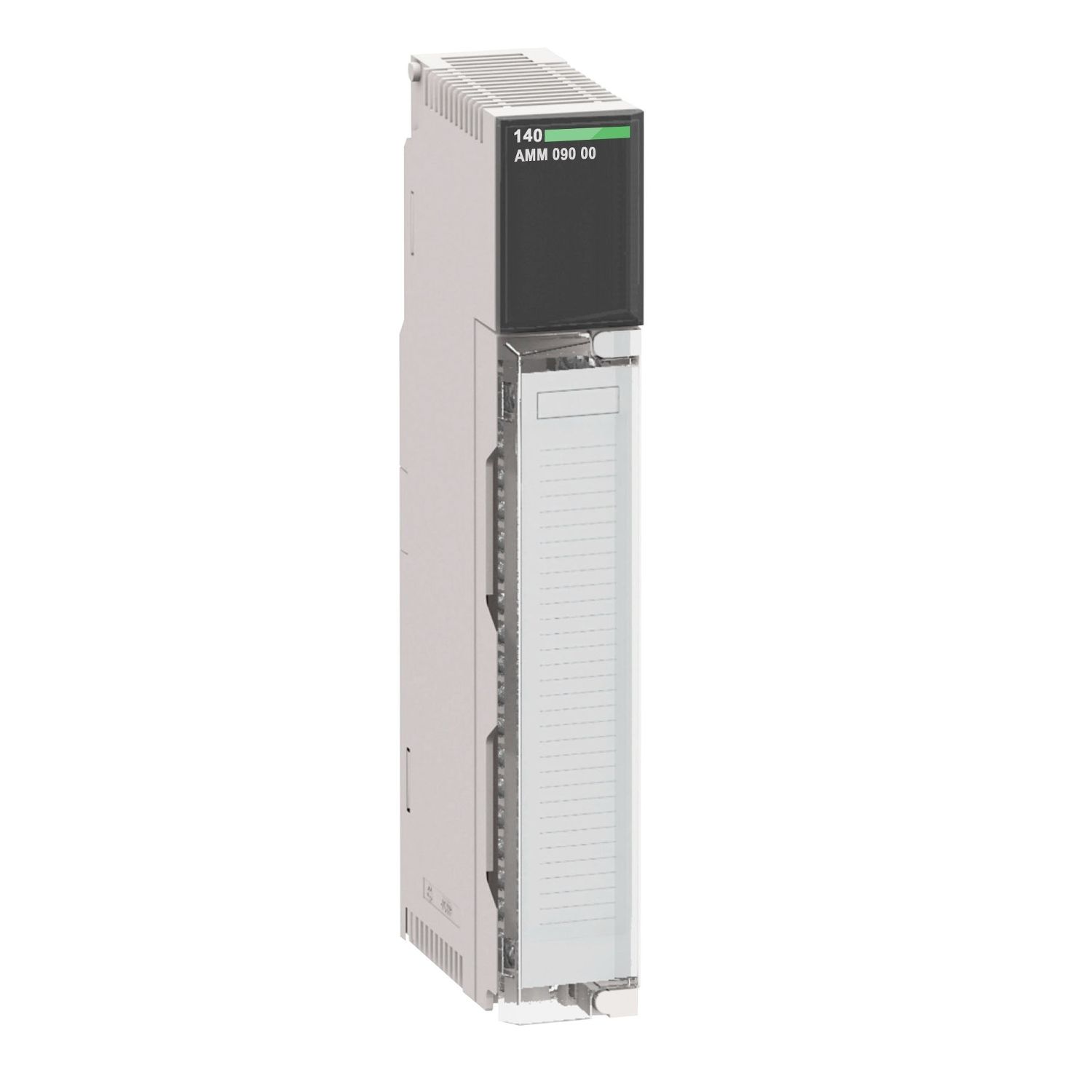

Picture of analog input output module Modicon Quantum - 4 I - 2 O
SKU:

140AMM09000

analog input output module Modicon Quantum - 4 I - 2 O

$6,468.64 INC GST
Availability: Please contact our sales team on 1300 724 622.
analog input output module Modicon Quantum - 4 I - 2 O
Be the first to review this product
Manufacturer: Schneider Electric
User guide
CAD
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type input/output analog module
Type of filter single pole low pass - 3 dB at 21 Hz +/- 20 % input circuit
Range of product Modicon Quantum automation platform
Complementary
Analogue input type unipolar voltage 0...5 V - resolution: 15 bits DC, unipolar voltage 0...10 V - resolution: 16 bits DC, unipolar offset voltage 1...5 V - resolution: 14 bits DC, unipolar offset current 4...20 mA - resolution: 14 bits DC, unipolar current 0...20 mA - resolution: 15 bits DC, bipolar voltage +/- 5 V - resolution: 15 bits DC, bipolar voltage +/- 10 V - resolution: 16 bits DC, bipolar current +/- 20 mA - resolution: 15 bits DC
Isolation between channels and bus 750 V DC for 1 minute, 500 V AC for 1 minute
Offset +/- 0.0014 % of full scale maximum/°C 0...60 °C input circuit
Isolation between input channel and output channel 750 V for 1 minute, 500 V for 1 minute
Module format standard
Common mode rejection > 80 dB 50/60 Hz input circuit
Absolute maximum input +/- 50 V voltage, +/- 25 mA current
Local signalling 6 LEDs (red) for channel fault, 6 LEDs (green) for channel is turned on, 1 LED (red) for external fault, 1 LED (green) for bus communication is present (Active)
Setting time 900 µs to +/- 0.1 % of the final value output circuit
Absolute accuracy error +/- 0.20 % of full scale at 25-25 °C output circuit, +/- 0.05 % of full scale maximum at 25-25 °C input circuit, +/- 0.03 % at 25-25 °C input circuit, +/- 0.007 %/°C of full scale maximum at 0-60 °C output circuit, +/- 0.004 % of full scale at 0-60 °C output circuit
Addressing requirement 5 input words, 2 output words
Bus current requirement 350 mA
Analogue output number 2
Update time 320 ms input circuit, 15 ms output circuit
Analogue input number 4
Analogue output resolution 12 bits
Isolation between channels 750 V DC for 1 minute, 500 V AC for 1 minute
Net weight 0.3 kg
I/O modularity 6 channels
External power requirement 7...30 V output circuit
Marking CE
Linearity monotonic +/- 1 LSB output, monotonic +/- 1 LSB input, 2.4 % over range, and - 9.6 % under range current, 2.4 % over and under range voltage
Analogue output range 4...20 mA
Loop voltage 7-30 V DC output circuit, 0-60 V DC with external resistance output circuit
Maximum voltage drop <30 V DC at 20 mA
Fault type status byte output circuit, overtacking scale (unipolar) input circuit, open circuit input/output circuit
Input impedance > 250 Ohm current, > 10 MOhm voltage
Gain shift +/- 0.002 of full scale maximum 0...60 °C input circuit
Environment
Operating altitude <= 5000 m
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Standards CSA C22.2 No 142, UL 508
Resistance to electromagnetic fields 10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications C-Tick.1, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 16.4 cm
Package 1 Length 31.0 cm
Package 1 Weight 461.0 g
