Picture of analog input module Modicon Quantum - 16 I multirange
SKU:

140ACI04000

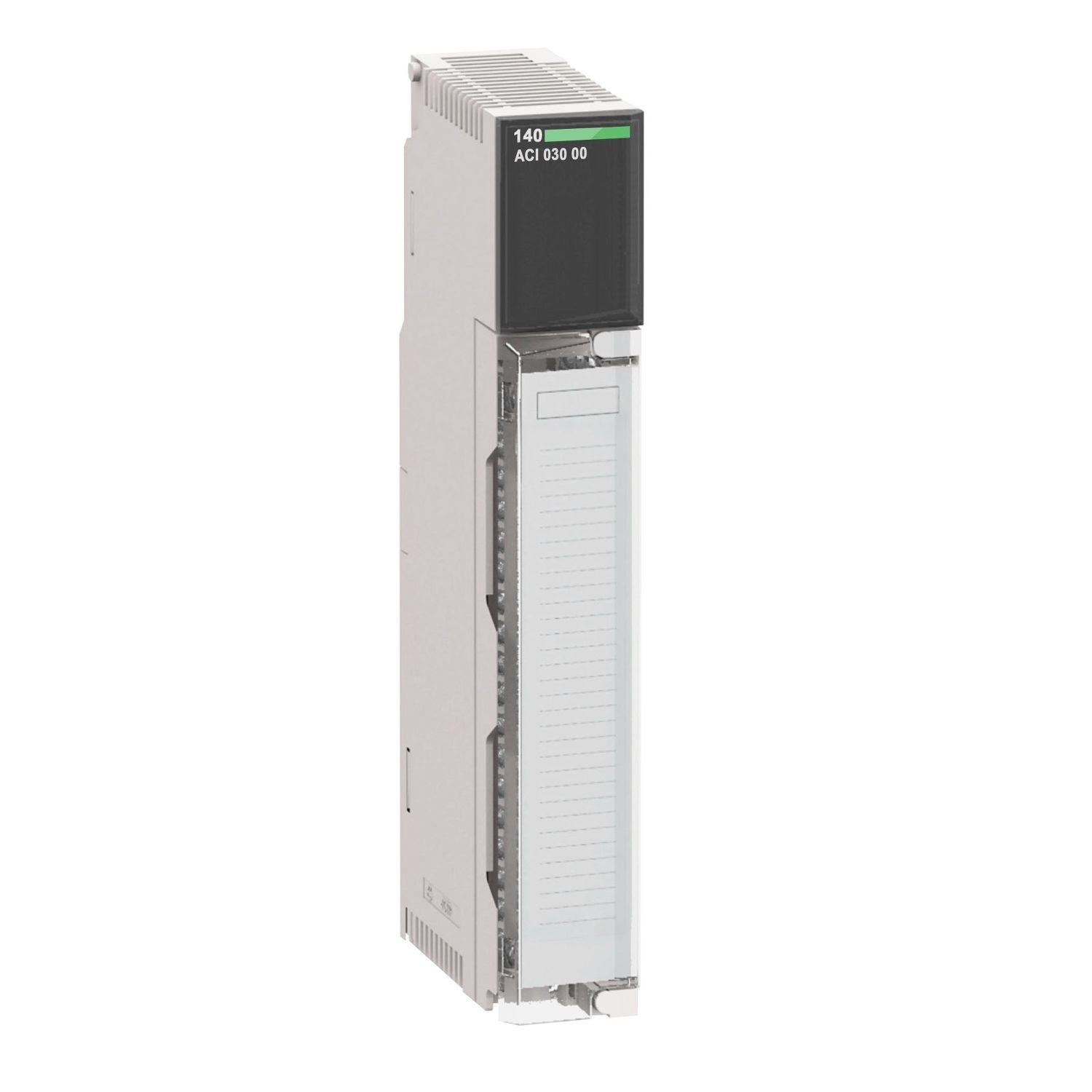

analog input module Modicon Quantum - 16 I multirange

$10,824.53 INC GST
Availability: Please contact our sales team on 1300 724 622.
analog input module Modicon Quantum - 16 I multirange
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
User guide
CAD
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type analogue input module
Type of filter single pole low pass - 3 dB at 34 Hz +/- 25 %
Range of product Modicon Quantum automation platform
Complementary
Isolation between channels and bus 1780 V AC for 60 s
Module format standard
Common mode rejection > - 90 dB 60 Hz
Linearity error +/- 6 µA max 4...20 mA, +/- 6 µA max 0...25 mA, +/- 6 µA max 0...20 mA, +/- 12 µA max 4...20 mA
Absolute maximum input 30 mA
Local signalling 16 LEDs (red) for channel fault, 16 LEDs (green) for channel is turned on, 1 LED (red) for external fault, 1 LED (green) for bus communication is present (Active)
Absolute accuracy error +/- 0.125 % of full scale
Addressing requirement 17 input words
Bus current requirement 360 mA
Power dissipation in W 5 W
Update time 15 ms 2 wires/4 wires
Analogue input number 16
Input type differential
Net weight 0.3 kg
Accuracy drift according to temperature <= 0.0050 % of full scale /°C, +/- 0.0025 % of full scale/°C
Analogue input resolution 0...4095 counts 4...20 mA, 0...25000 counts 0...25 mA, 0...20000 counts 0...20 mA, 0...16000 counts 4...20 mA
Marking CE
Fault type broken wire 4...20 mA
Input impedance 250 Ohm
Environment
Operating altitude <= 5000 m
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Standards CSA C22.2 No 142, UL 508
Resistance to electromagnetic fields 10 V/m 80-1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications cUL, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.6 cm
Package 1 Width 16.5 cm
Package 1 Length 31.0 cm
Package 1 Weight 433.0 g
